Video Cables

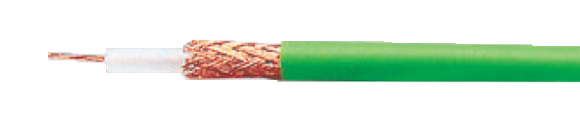

PE-Insulated, Bare Copper Conductor / Bare Copper Braid , PVC Outer Jacket 0.6 / 3.7

Hi-Tech Controls, Inc, European & Domestic cable

Video Cables, 0.6 / 3.7 Indoor, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number: 40171
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 1 Ohm
Propagation Velocity v/c: 0.66
Attenuation at 20°C/68°F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
1.1 2.5 - 3.5 - -
Direct Current Resistance at 20°C/68°F:

Inner Conductor max.: 63.0 Ohm/km
Outer Conductor max.: 13.0 Ohm/km
Approx. Capacitance: 67.0 pF/m
Test Voltage: 4.2
Working Voltage (kV):

Pulse Operation: 3.6
HF-Operation (Peak Value): 1.8
DC Operation: 8.0
Shielding Efficiency (dB) 50 and 900 MHz = -
Copper Weight kg/km: 22.0
Technical Data
Electrical Characteristics
Impedance: 75 1 Ohm
Propagation Velocity v/c: 0.66
Attenuation at 20C/68F (dB/100m):

1 MHz 5 MHz 7 MHz 10 MHz 50 MHz 100 MHz
1.1 2.5 - 3.5 - -
Direct Current Resistance at 20C/68F:

Inner Conductor max.: 63.0 Ohm/km
Outer Conductor max.: 13.0 Ohm/km
Approx. Capacitance: 67.0 pF/m
Test Voltage: 4.2
Working Voltage (kV):

Pulse Operation: 3.6
HF-Operation (Peak Value): 1.8
DC Operation: 8.0
Shielding Efficiency (dB) 50 and 900 MHz = -
Copper Weight kg/km: 22.0
Approvals
RoHS
Cable Construction
Inner Conductor mm: 0.6
Conductor Material: Copper, bare
Insulation mm: 3.7 PE
Outer Conductor 1: Bare copper braid
in mm (approximately): 4.3
Inner Jacket/Foil: no
in mm (approximately): -
Outer Conductor 2: no
in mm (approximately): -
Outer Jacket: PVC
Jacket Color: Green
Outer Diameter (approx.): 6.1 mm
Min. Bending Radius: 30 mm
Weight (approx.): 48 kg/km
Properties
  • N/A
Note
  • N/A
Cable Accessories
  • Coming Soon!
