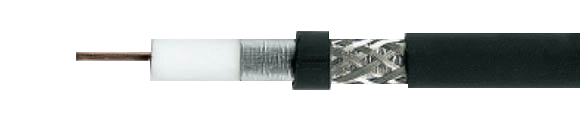

SAT-Coaxial Cables

For Digital-Tv, Shielding Efficiency < 90 dB / > 95 dB, for Satellite Receivers, Double Shielded 1.6 / 7.0

Sealcon, Inc, European & Domestic cable

SAT-Coaxial Cables, for digital-tv, shielding efficiency < 90 dB / > 95 dB, for satellite receivers, double shielded, 1.6 / 7.0, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,
Part Number: 40018
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 2 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.85
Attenuation at 20°C/68°F (dB/100m):

100 MHz 200 MHz 450 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2250 MHz 2400 MHz
3.0 6.1 9.0 - 14.3 20.1 22.5 24.0 -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
40 35 35 30
Direct Current Resistance at 20°C/68°F:

Inner Conductor max. 9.0 Ohm/km
Outer Conductor max. 21.0 Ohm/km
Shielding Efficiency =(dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
90 90 90 90
Technical Data
Electrical Characteristics
Impedance: 75� 2 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.85
Attenuation at 20�C/68�F (dB/100m):

100 MHz 200 MHz 450 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2250 MHz 2400 MHz
3.0 6.1 9.0 - 14.3 20.1 22.5 24.0 -
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
40 35 35 30
Direct Current Resistance at 20�C/68�F:

Inner Conductor max. 9.0 Ohm/km
Outer Conductor max. 21.0 Ohm/km
Shielding Efficiency =(dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
90 90 90 90
Approvals
RoHS
Cable Construction Used as: Underground
Inner Conductor � mm: 1.63
Conductor Material: Copper, bare
Insulation � mm: 7.1 PE, foamed
Outer Conductor: Polyester foil coated with Aluminum on both sides, Tinned copper braid
1st Shield - ALPR: Polyester foil coated with Aluminum on both sides
2nd Shield - Cu-Braid: Tinned copper braid
Outer Jacket: PE
Jacket Color: Black
Outer Diameter (approx.): 10.3 mm
Min. Bending Radius: 60 mm
Weight (approx.): 110 kg/km
Copper Weight kg/km: 32.0
Properties
  • N/A
Note
  • N/A
Cable Accessories
  • Coming Soon!
