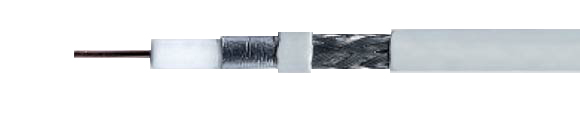

SAT-Coaxial Cables

For Digital-Tv, Shielding Efficiency < 90 dB / > 95 dB, for Satellite Receivers, Double Shielded 1.1 / 5.0 FRNC

Hi-Tech Controls, Inc, European & Domestic cable

SAT-Coaxial Cables, for digital-tv, shielding efficiency < 90 dB / > 95 dB, for satellite receivers, double shielded, 1.1 / 5.0 FRNC, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number: 40019
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 2 Ohm
Approx. Capacitance: 53.0 pF/m
Propagation Velocity v/c: 0.85
Attenuation at 20°C/68°F (dB/100m):

100 MHz 200 MHz 450 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2250 MHz 2400 MHz
4.7 7.0 11.5 17.0 18.1 25.0 27.3 28.0 29.3
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
25 18 17 15
Direct Current Resistance at 20°C/68°F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 14.0 Ohm/km
Shielding Efficiency =(dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
90 90 90 90
Technical Data
Electrical Characteristics
Impedance: 75 2 Ohm
Approx. Capacitance: 53.0 pF/m
Propagation Velocity v/c: 0.85
Attenuation at 20C/68F (dB/100m):

100 MHz 200 MHz 450 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2250 MHz 2400 MHz
4.7 7.0 11.5 17.0 18.1 25.0 27.3 28.0 29.3
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 1750 MHz
25 18 17 15
Direct Current Resistance at 20C/68F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 14.0 Ohm/km
Shielding Efficiency =(dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
90 90 90 90
Approvals
RoHSFRNC
Cable Construction Used as: Indoors
Inner Conductor mm: 1.13
Conductor Material: Copper, bare
Insulation mm: 4.8 Cell PE, foamed
Outer Conductor: Polyester foil coated with Aluminum on both sides, Tinned copper braid
1st Shield - ALPR: Polyester foil coated with Aluminum on both sides
2nd Shield - Cu-Braid: Tinned copper braid
Outer Jacket: FRNC
Jacket Color: White
Outer Diameter (approx.): 6.8 mm
Min. Bending Radius: 48 mm
Weight (approx.): 47 kg/km
Copper Weight kg/km: 15.0
Application

Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
