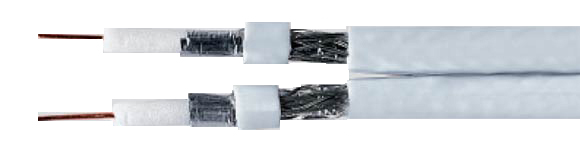

SAT-Coaxial Cables

Up to 2150 MHz, for Satellite Receivers, Double Shielded, Cell PE-Insulated, Bare Copper Conductor / Polyester Foil Coated with Aluminum on Both Sides, Braid, PVC Outer Jacket DUO 2x0.7 / 2.9

Hi-Tech Controls, Inc, European & Domestic cable

SAT-Coaxial Cables, up to 2150 MHz, for satellite receivers, double shielded, DUO 2x0.7 / 2.9, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number: 40168
Electrical Characteristics
Impedance: 75± 3 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.8
Post Office Approved: -
Copper Weight: 16.0
Attenuation at 20°C/68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz
8.9 13.5 22.0 28.0 31.5 37.0 42.3 45.9 50.4
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 2050 MHz
20 17 17 0
Direct Current Resistance at 20°C/68°F:

Inner Conductor max. 110.0 Ohm/km
Outer Conductor max. 22.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75
Technical Data
Electrical Characteristics
Impedance: 75± 3 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.8
Post Office Approved: -
Copper Weight: 16.0
Attenuation at 20°C/68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz
8.9 13.5 22.0 28.0 31.5 37.0 42.3 45.9 50.4
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 2050 MHz
20 17 17 0
Direct Current Resistance at 20°C/68°F:

Inner Conductor max. 110.0 Ohm/km
Outer Conductor max. 22.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75

Approvals
RoHSCEVDEPCT
Cable Construction
Inner Conductor Ø mm: 0.65
Conductor Material: Copper, bare
Insulation Ø mm: 3.0 Cell PE
Outer Conductor: Polyester foil coated with Aluminum on both sides, Braid
Outer Jacket: PVC
Jacket Color: White
Outer Diameter (approx.): 8.6 x 4.3 mm
Min. Bending Radius: 35 mm
Weight (approx.): 40 kg/km
Application
Not Available
Properties
  • Not Available
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • AL = Aluminum, ALPR = Polyester foil coated with Aluminum on both sides, Cu = Copper, CuW = Copper-weld, F = Foil, G = Braid, PE = Polyethylene, PEH = Polyethylene air space insulation, PVC = Polyvinylchloride, vz = Tinned
