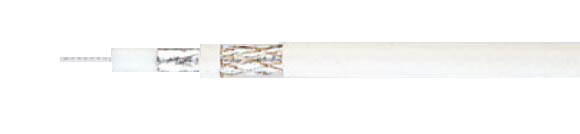

SAT-Coaxial Cables

Up to 2150 MHz, for Satellite Receivers, Double Shielded, Cell PE-Insulated, Tinned Copper Conductor / Polyester Foil Coated with Aluminum on Both Sides, Braid, PVC Outer Jacket 1.1 / 5.0 ALG

Hi-Tech Controls, Inc, European & Domestic cable

SAT-Coaxial Cables, up to 2150 MHz, for satellite receivers, double shielded, 1.1 / 5.0 ALG, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number: 40150
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 3 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.82
Post Office Approved: G670010A
Copper Weight: 10.0
Attenuation at 20°C/68°F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz
5.0 7.3 13.0 17.2 19.5 23.5 27.6 30.0 31.0
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 2050 MHz
28 28 26 24
Direct Current Resistance at 20°C/68°F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 20.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75
Technical Data
Electrical Characteristics
Impedance: 75 3 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.82
Post Office Approved: G670010A
Copper Weight: 10.0
Attenuation at 20C/68F (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz 950 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz
5.0 7.3 13.0 17.2 19.5 23.5 27.6 30.0 31.0
Structural Return Loss (min.):

30 and 300 MHz 300 and 600 MHz 600 and 960 MHz 960 and 2050 MHz
28 28 26 24
Direct Current Resistance at 20C/68F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 20.0 Ohm/km
Shielding Efficiency (dB):

50 and 100 MHz 100 and 500 MHz 500 and 1000 MHz 1000 and 2050 MHz
75 75 75 75
Approvals
RoHS
Cable Construction
Inner Conductor mm: 1.1
Conductor Material: Tinned copper
Insulation mm: 5.0 Cell PE
Outer Conductor: Polyester foil coated with Aluminum on both sides, Braid
Outer Jacket: PVC
Jacket Color: White
Outer Diameter (approx.): 6.8 mm
Min. Bending Radius: 40 mm
Weight (approx.): 49 kg/km
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • AL = Aluminum, ALPR = Polyester foil coated with Aluminum on both sides, Cu = Copper, CuW = Copper-weld, F = Foil, G = Braid, PE = Polyethylene, PEH = Polyethylene air space insulation, PVC = Polyvinylchloride, vz = Tinned
Cable Accessories
  • Coming Soon!
