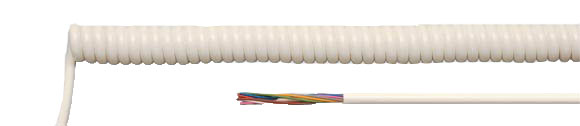

Hi-Tech Controls Helukabel Spiral Cables: PVC Spiral Cables

PVC Spiral Cables, white and black, RoHS Approved, RoHS Compliant, Hi-Tech Controls, Helukabel
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km 		AWG
black white
84500 84700  PVC Spiral Cable 2 x 0.75 200 mm 6.2 21.4 34.6 18
84502 84702  PVC Spiral Cable 2 x 0.75 400 mm 6.2 21.4 63.4 18
84504 84704  PVC Spiral Cable 2 x 0.75 600 mm 6.2 21.4 92.2 18
84506 84706  PVC Spiral Cable 2 x 0.75 800 mm 6.2 21.4 121.0 18
84508 84708  PVC Spiral Cable 2 x 0.75 1000 mm 6.2 21.4 149.8 18
84509 84709  PVC Spiral Cable 2 x 0.75 1200 mm 6.2 21.4 178.6 18
84510 84710  PVC Spiral Cable 2 x 0.75 1400 mm 6.2 21.4 207.4 18
84517 84717  PVC Spiral Cable 3 x 0.75 200 mm 6.6 22.2 51.9 18
84519 84719  PVC Spiral Cable 3 x 0.75 400 mm 6.6 22.2 95.1 18
84521 84721  PVC Spiral Cable 3 x 0.75 600 mm 6.6 22.2 138.3 18
84523 84723  PVC Spiral Cable 3 x 0.75 800 mm 6.6 22.2 181.5 18
84525 84725  PVC Spiral Cable 3 x 0.75 1000 mm 6.6 22.2 224.7 18
84526 84726  PVC Spiral Cable 3 x 0.75 1200 mm 6.6 22.2 267.8 18
84527 84727  PVC Spiral Cable 3 x 0.75 1400 mm 6.6 22.2 311.1 18
84534 84734  PVC Spiral Cable 2 x 1.0 200 mm 6.6 22.2 43.2 17
84536 84736  PVC Spiral Cable 2 x 1.0 400 mm 6.6 22.2 65.3 17
84538 84738  PVC Spiral Cable 2 x 1.0 600 mm 6.6 22.2 122.8 17
84540 84740  PVC Spiral Cable 2 x 1.0 800 mm 6.6 22.2 161.3 17
84542 84742  PVC Spiral Cable 2 x 1.0 1000 mm 6.6 22.2 199.7 17
84543 84743  PVC Spiral Cable 2 x 1.0 1200 mm 6.6 22.2 238.1 17
84544 84744  PVC Spiral Cable 2 x 1.0 1400 mm 6.6 22.2 276.5 17
84585 84785  PVC Spiral Cable 2 x 1.5 200 mm 7.7 26.4 69.6 16
84587 84787  PVC Spiral Cable 2 x 1.5 400 mm 7.7 26.4 127.0 16
84589 84789  PVC Spiral Cable 2 x 1.5 600 mm 7.7 26.4 185.6 16
84591 84791  PVC Spiral Cable 2 x 1.5 800 mm 7.7 26.4 243.6 16
84593 84793  PVC Spiral Cable 2 x 1.5 1000 mm 7.7 26.4 301.6 16
84594 84794  PVC Spiral Cable 2 x 1.5 1200 mm 7.7 26.4 359.6 16
84595 84795  PVC Spiral Cable 2 x 1.5 1400 mm 7.7 26.4 417.6 16
84602 84802  PVC Spiral Cable 3 x 1.5 200 mm 8.5 29.0 103.2 16
84604 84804  PVC Spiral Cable 3 x 1.5 400 mm 8.5 29.0 189.2 16
84606 84806  PVC Spiral Cable 3 x 1.5 600 mm 8.5 29.0 275.2 16
84608 84808  PVC Spiral Cable 3 x 1.5 800 mm 8.5 29.0 361.2 16
84610 84810  PVC Spiral Cable 3 x 1.5 1000 mm 8.5 29.0 447.2 16
84611 84811  PVC Spiral Cable 3 x 1.5 1200 mm 8.5 29.0 533.2 16
84612 84812  PVC Spiral Cable 3 x 1.5 1400 mm 8.5 29.0 619.2 16
Technical Data Helukabel
  • Temperature range
    -5°C to +70°C (+23°C to +158°C)
  • Nominal voltage
    H03VV-F 300/300 V (up to 1 mm2)
    H05VV-F 300/500 V (from 1.5 mm2)
  • Test voltage 2000 V
  • Expansion ratio 1:3
    straight ends 200/200
Approvals
RoHS
Cable Construction
  • Bare copper, fine wire conductors to VDE 0295 cl. 5
  • PVC conductor insulation
  • Conductors stranded
  • Conductors color coded to VDE 0293
  • PVC outer jacket, white or black
Application
  • Lighting industry
  • Data installations
  • Shops
Properties
  • Not Available
Note
  • AWG sizes are approximately equivalent values. The actual cross section is in mm2
  • On request closed spiral lengths up to max. 5000 mm possible.
Cable Accessories
  • Coming Soon!
