Hi-Tech Controls Helukabel Spiral Cables:

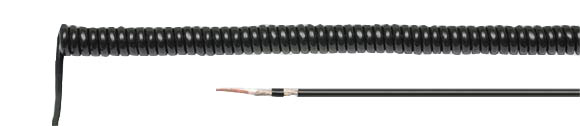

PUR Electronic Spiral Cables - Shielded

PUR Electronic Spiral Cables - Shielded, RoHS Approved, RoHS Compliant, Hi-Tech Controls, Helukabel
AWG Selection
26
 26
24
 24
20
 20
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km 		AWG
85900  PUR Electronic - Shielded 2X0.14 300 3.8 13.6 30.6 26
85901  PUR Electronic - Shielded 2X0.14 400 3.8 13.6 39.6 26
85902  PUR Electronic - Shielded 2X0.14 500 3.8 13.6 48.6 26
85905  PUR Electronic - Shielded 2X0.14 1000 3.8 13.6 93.6 26
600154  PUR Electronic - Shielded 3X0.14 300 4.1 15.2 44.2 26
600155  PUR Electronic - Shielded 3X0.14 400 4.1 15.2 55.8 26
600156  PUR Electronic - Shielded 3X0.14 500 4.1 15.2 67.5 26
600157  PUR Electronic - Shielded 3X0.14 1000 4.1 15.2 135.0 26
85916  PUR Electronic - Shielded 4X0.14 300 4.6 16.2 47.6 26
85917  PUR Electronic - Shielded 4X0.14 400 4.6 16.2 61.6 26
85918  PUR Electronic - Shielded 4X0.14 500 4.6 16.2 75.6 26
85921  PUR Electronic - Shielded 4X0.14 1000 4.6 16.2 145.6 26
85924  PUR Electronic - Shielded 5X0.14 300 4.6 17.2 54.4 26
85925  PUR Electronic - Shielded 5X0.14 400 4.6 17.2 70.4 26
85926  PUR Electronic - Shielded 5X0.14 500 4.6 17.2 86.4 26
85929  PUR Electronic - Shielded 5X0.14 1000 4.6 17.2 166.4 26
85932  PUR Electronic - Shielded 6X0.14 300 5.2 19.4 64.6 26
85933  PUR Electronic - Shielded 6X0.14 400 5.2 19.4 83.6 26
85934  PUR Electronic - Shielded 6X0.14 500 5.2 19.4 102.6 26
85937  PUR Electronic - Shielded 6X0.14 1000 5.2 19.4 197.6 26
85940  PUR Electronic - Shielded 7X0.14 300 5.5 20.0 68.0 26
85941  PUR Electronic - Shielded 7X0.14 400 5.5 20.0 88.0 26
85942  PUR Electronic - Shielded 7X0.14 500 5.5 20.0 108.0 26
85945  PUR Electronic - Shielded 7X0.14 1000 5.5 20.0 208.0 26
85948  PUR Electronic - Shielded 8X0.14 300 5.6 20.2 74.8 26
85949  PUR Electronic - Shielded 8X0.14 400 5.6 20.2 96.8 26
85950  PUR Electronic - Shielded 8X0.14 500 5.6 20.2 118.8 26
85953  PUR Electronic - Shielded 8X0.14 1000 5.6 20.2 228.8 26
85980  PUR Electronic - Shielded 2X0.25 300 4.5 16.0 51.0 24
85981  PUR Electronic - Shielded 2X0.25 400 4.5 16.0 66.0 24
85982  PUR Electronic - Shielded 2X0.25 500 4.5 16.0 81.0 24
85985  PUR Electronic - Shielded 2X0.25 1000 4.5 16.0 156.0 24
85988  PUR Electronic - Shielded 4X0.25 300 5.0 18.0 74.8 24
85989  PUR Electronic - Shielded 4X0.25 400 5.0 18.0 96.8 24
85990  PUR Electronic - Shielded 4X0.25 500

5.0

 18.0 118.8 24
Helukabel
Part-No.		 Description & No. Conductors x cross-sec. mm2 Spiral Length unexpanded (mm) Cable Ø (mm) Spiral Outer Ø (mm) Cop. Weight
kg/km 		AWG
85993  PUR Electronic - Shielded 4X0.25 1000 5.0 18.0 228.8 24
85996  PUR Electronic - Shielded 5X0.25 300 5.4 19.8 85.0 24
85997  PUR Electronic - Shielded 5X0.25 400 5.4 19.8 110.0 24
85998  PUR Electronic - Shielded 5X0.25 500 5.4 19.8 135.0 24
86001  PUR Electronic - Shielded 5X0.25 1000 5.4 19.8 260.0 24
86004  PUR Electronic - Shielded 6X0.25 300 5.7 20.4 102.0 24
86005  PUR Electronic - Shielded 6X0.25 400 5.7 20.4 132.0 24
86006  PUR Electronic - Shielded 6X0.25 500 5.7 20.4 162.0 24
86009  PUR Electronic - Shielded 6X0.25 1000 5.7 20.4 312.0 24
86012  PUR Electronic - Shielded 8X0.25 300 6.5 23.0 119.0 24
86013  PUR Electronic - Shielded 8X0.25 400 6.5 23.0 154.0 24
86014  PUR Electronic - Shielded 8X0.25 500 6.5 23.0 189.0 24
86017  PUR Electronic - Shielded 8X0.25 1000 6.5 23.0 364.0 24
86020  PUR Electronic - Shielded 12X0.25 300 7.1 26.2 170.0 24
86021  PUR Electronic - Shielded 12X0.25 400 7.1 26.2 220.0 24
86022  PUR Electronic - Shielded 12X0.25 500 7.1 26.2 270.0 24
86025  PUR Electronic - Shielded 12X0.25 1000 7.1 26.2 520.0 24
86036  PUR Electronic - Shielded 2X0.5 300 5.5 20.0 78.2 20
86037  PUR Electronic - Shielded 2X0.5 400 5.5 20.0 101.2 20
86038  PUR Electronic - Shielded 2X0.5 500 5.5 20.0 124.2 20
86041  PUR Electronic - Shielded 2X0.5 1000 5.5 20.0 239.2 20
86044  PUR Electronic - Shielded 4X0.5 300 5.8 21.6 153.0 20
86045  PUR Electronic - Shielded 4X0.5 400 5.8 21.6 198.0 20
86046  PUR Electronic - Shielded 4X0.5 500 5.8 21.6 243.0 20
86049  PUR Electronic - Shielded 4X0.5 1000 5.8 21.6 648.0 20
86052  PUR Electronic - Shielded 6X0.5 300 7.0 26.0 231.2 20
86053  PUR Electronic - Shielded 6X0.5 400 7.0 26.0 299.2 20
86054  PUR Electronic - Shielded 6X0.5 500 7.0 26.0 367.2 20
86057  PUR Electronic - Shielded 6X0.5 1000 7.0 26.0 707.2 20
86060  PUR Electronic - Shielded 8X0.5 300 8.0 29.0 289.0 20
86061  PUR Electronic - Shielded 8X0.5 400 8.0 29.0 374.0 20
86062  PUR Electronic - Shielded 8X0.5 500 8.0 29.0 459.0 20
86065  PUR Electronic - Shielded 8X0.5 1000 8.0 29.0 884.0 20
86068  PUR Electronic - Shielded 12X0.5 300 8.8 31.6 380.8 20
86069  PUR Electronic - Shielded 12X0.5 400 8.8 31.6 492.8 20
86070  PUR Electronic - Shielded 12X0.5 500 8.8 31.6 604.8 20
86073  PUR Electronic - Shielded 12X0.5 1000 8.8 31.6 1164.8 20
Technical Data
  • Temperature Range
    -25°C to +70°C (-13°F to +158°F)
  • Nominal Voltage
    300 V (up to 0.14 mm2)
    500 V (from 0.25 mm2)
  • Test Voltage 2000 V
  • Expansion Ratio 1:4
    Straight ends 200/200
Approvals
RoHS
Cable Construction
  • Bare copper, fine wire conductor to VDE 0295 cl. 6 and IEC 60228 cl. 6
  • TPE-E conductor insulation
  • Conductor identification to DIN 47100
  • Conductors stranded in layers
  • Overall shielding
  • PUR outer jacket
  • Color: Black
Application
Control technology use
Properties
  • Not Available
Note
  • AWG sizes are approximately equivalent values. The actual cross section is in mm2
  • On request closed spiral lengths up to max. 5000 mm possible.
Cable Accessories
  • Coming Soon!
