Nominal Voltage U0/U
600/1000 V
Part No. 75362, 73976
U0/U 300/500 V
A.C. Test Voltage,
50 Hz
power supply conductors 4000 V
control conductors 1000 V
Coupling Resistance max.
250 Ohm/km
Minimum Bending Radius for
flexible installation
approx. 15x cable Ø
Approvals
Cable
Construction

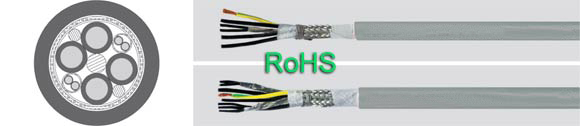

TOPSERV® 222 H
Bare copper, fine wire in acc.
with DIN VDE 0295 cl. 5 or IEC
60228 cl. 5
Conductor insulation of halogen-free
polymer HI2
Black power supply conductors with
imprint U1, V2, W3
Green-yellow grounding
Black control conductors with white
imprint 5-6 and 7-8
Shielding of the control conductors
in pairs wrapped with plastic aluminum-covered
polyester foil, copper drain-wire
tinned and tinned copper braided
shielding, approx. coverage 85%
polyester foil wrapping over shielding
Control conductors stranded in pairs
together with the power supply
conductors in layers with optimal lay-length
Taping of polyester foil
Overall shielding of tinned copper
braid, coverage approx. 85%
Halogen-free HM2 polymer jacket
to DIN VDE 0207 part 24
Jacket color gray (RAL 7001)
TOPSERV® 223 H
Construction as above, except
Conductor insulation of polyethylene
(PE), compound type 2Y to DIN VDE
0207 part 2
Jacket color gray (RAL 7001)
Part No. 73976, 75362 (300/500V)
Construction
as TOPSERV® 223
H, except
Control
conductors white, brown, black,
red
Jacket
color petrol (RAL 5018)
Application
These
halogen-free, flame retardant cables
provide an ideal combination of
supply conductors with the control conductors
for the braking function and thermal
protection. Precision servomotors,
as used today in many areas of
highly-automated manufacturing
processes, call for high-quality,
reliable and long-lasting cables.
They are manufactured based on
specifications from leading manufacturers
of servo drives and control systems,
as well as in compliance with various
VDE standards. EMI
= Electromagnetic
Interference
To optimize the EMI features we recommend
a large round contact of the copper
braiding on both ends. =
The product is conformed
with the EC Low-Voltage Directive
73/23/EEC and 93/68/EEC.
Properties
Halogen-free:to DIN VDE 0472 part 815
and IEC 60754-1
Flame-test:flame retardant and self-extinguishing
acc. to IEC 60332-1 and DIN VDE 0472
part 804 test method B (T 223 H), test
method C (T 222 H)
Corrosiveness of combustion gases:
Complies with IEC 60754-2 and DIN VDE
part 813 and HD 602 - no generation of
corrosive gases in the event of fire
Smoke density:low (low smoke emission)
Oxygen index: 30%
Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approx. 85% coverage from the braided
shielding
TOPSERV® 223 H This type is an economical alternative
to TOPSERV® 222-H. Compared with HI2,
PVC and TPE conductors, its PE-insulated conductors
have significantly better capacitance values,
and thus provide greater reliability with
regard to signal transmission.
Note
Brackets ( ) indicate shielding.
For applications with continuous movement,
such as in energy supply chains, we recommend
that you use our highly-flexible servo
cables.
