Cable Index | Servo, Feedback & Motor Cable | Servo Cable
PDF Printable PDF

Helukabel Servo, Feedback & Motor Cable:
TOPSERV® 155/156

Highly Flexible, Two Approvals Drag Chain Servo Cable, PUR Jacket, Low Capacitance, 0.6/1 kV, Halogen-Free
According to INDRAMAT Standard

Hi-Tech Controls, Inc, HELUKABEL wires and cables

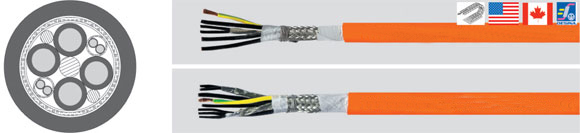

TOPSERV 155/156, Highly Flexible, two approvals drag chain servo cable, PUR jacket, low capacitance, 0,6/1 kV, Halogen-Free, Hi-Tech Controls, Helukabel
Grey Cable
TOPSERV® 155
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG

79562

 TOPSERV 155 (4X1.5+(2X1))

 11.7 138.0 245.0 16

700501

 TOPSERV 155 (4x1.5+(2x1.5))

 12.5 148.0 255.0 16

79563

 TOPSERV 155 (4X 2.5+(2X1))

 13.1 177.0 329.0 14

700502

 TOPSERV 155 (4x2.5+(2x1.5))

 13.8 187.0 339.0 14

79564

 TOPSERV 155 (4X 4 +(2X1))

 14.4 258.0 462.0 12

700503

 TOPSERV 155 (4x4+(2x1.5))

 14.9 168.0 472.0 12

79565

 TOPSERV 155 (4X 6 +(2X1))

 15.6 349.0 596.0 10

700504

 TOPSERV 155 (4x6+(2x1.5))

 15.9 359.0 606.0 10

79566

 TOPSERV 155 (4X10 +(2X1))

 18.0 574.0 853.0 8

700505

 TOPSERV 155 (4x10+(2x1.5))

 18.0 584.0 863.0 8

79567

 TOPSERV 155 (4X16 +(2X1))

 21.8 815.0 1194.0 6

700506

 TOPSERV 155 (4x16+(2x1.5))

 21.8 825.0 1204.0 6

79568

 TOPSERV 155 (4X25 +(2X1))

 26.7 1273.0 1499.0 4

700507

 TOPSERV 155 (4x25+(2x1.5))

 26.7 1283.0 1509.0 4

79569

 TOPSERV 155 (4X35 +(2X1))

 30.8 1840.0 1992.0 2

700508

 TOPSERV 155 (4x35+(2x1.5))

 30.8 1850.0 2002.0 2

79570

 TOPSERV 155 (4X50 +(2X1))

 34.7 2530.0 2880.0 1
700509

 TOPSERV 155 (4X50 +(2X1.5))

 34.7 2540.0 2890.0 1
TOPSERV® 156
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG

79571

TOPSERV 156(4X1.5+2X(2X1))

 12.8 182.0 262.0 16

700510

 TOPSERV 156 (4x1.5+2x(2x1.5))

 13.6 192.0 272.0 16

700402

 TOPSERV 156 (4x2.5+4x(2x0.34))

 15.3 190.0 340.0 14

79572

 TOPSERV 156(4X2.5+2X(2X1))

 14.1 229.0 336.0 14

700511

 TOPSERV 156 (4x2.5+2x(2x1.5))

 14.8 239.0 346.0 14

79573

 TOPSERV 156(4X4.0+2X(2X1))

 16.0 312.0 475.0 12

700512

 TOPSERV 156 (4x4+2x(2x1.5))

 16.5 322.0 485.0 12

79574

 TOPSERV 156(4X6.0+2X(2X1))

 18.1 376.0 606.0 10

700513

 TOPSERV 156 (4x6+2x(2x1.5))

 18.1 447.0 616.0 10

79575

 TOPSERV 156 (4X10+2X(2X1))

 18.8 609.0 905.0 8

700514

 TOPSERV 156 (4x10+2x(2x1.5))

 18.8 619.0 915.0 8

79576

 TOPSERV 156 (4X16+2X(2X1))

 21.8 893.1 1225.0 6

700515

 TOPSERV 156 (4x16+2x(2x1.5))

 21.8 904.0 1235.0 6

79577

 TOPSERV 156 (4X25+2X(2X1))

 26.7 1350.0 1584.0 4

700516

 TOPSERV 156 (4x25+2x(2x1.5))

 26.7 1323.0 1594.0 4

79578

 TOPSERV 156 (4X35+2X(2X1))

 30.8 1611.0 2185.0 2

700517

 TOPSERV 156 (4x35+2x(2x1.5))

 30.8 1921.0 2195.0 2

79579

 TOPSERV 156 (4X50+2X(2X1))

 34.7 2574.0 2974.0 1

700518

 TOPSERV 156 (4x50+2x(2x1.5))

 34.7 2584.0 2984.0 1
Technical Data Helukabel
  • Special PUR drag chain cable acc. to UL AWM Style 20235 and CSA AWM
  • Based on DIN VDE 0293, 0295, 0250, 0281
  • Temperature Range
    Flexing
    -20°C to +80°C (-4°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage
    Acc. to UL 1000 V
    Acc. to VDE
    Power supply conductors U0/U 600/1000 V
    Control conductors U0/U 300/500 V
  • A.C. Test Voltage, 50 Hz
    Power supply conductors 4000 V
    Control conductors 1000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Coupling Resistance
    Max. 250 Ohm/km
  • Minimum Bending Radius
    Approx. 7.5x cable Ø
Approvals
RoHSUL CSA CE VDE
Cable Construction
TOPSERV® 155 (with 1 control pair)
  • Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
  • Polypropylen conductor insulation, halogen-free
  • Black power supply cores with imprint U1, V2, W3
  • Green-yellow grounding
  • Black control conductor with imprint BR1, BR2
  • Shielding of the control conductor in pairs wrapped with plastic aluminium foil, copper drain-wire tinned and tinned copper braided shielding, approx. coverage 85%
  • Control conductor stranded in pairs and laid up in layers together with the power supply conductors with optimal lay length and stabilizing filler
  • Fleece wrapping facilitates sliding
  • Overall shielding of tinned copper wire braid, coverage approx. 85%
  • PUR outer jacket
  • Jacket color: Orange (RAL 2003) according to DESINA®
TOPSERV® 156 (with 2 or 4 control pairs)
  • Construction as per TOPSERV® 155
  • Except 2 or 4 shielded control pairs
  • Black control conductors with white imprint 5-6 and 7-8
Application
The combination of supply conductors with the control conductors for the braking function and the thermal protection in these cables is ideal. Precision servomotors, as used today in many areas of highly-automated manufacturing processes, call for high-quality, reliable and long-lasting cables. These requirements are met to a high degree by these cables. The cables have an additional overall shielding to ensure EMC compatibility, i.e. for protection against electromagnetic interference. Production is based on the specifications of established manufacturers of servo-drives and controls, as well as on various VDE, UL and CSA standards. Applications include machine, plant and robot construction, automation, drive, control and production engineering.
Attractive for export-oriented mechanical and system engineering.
EMI = Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PUR outer jacket: low adhesion, flame retardant, extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack
  • PUR jacket: self-extinguishing and flame retardant, test method B acc. to DIN VDE 0472 part 804 and IEC 60332-1
  • The use of polypropylene for conductor insulation means that thanks to the reduction in cable-related losses, these low capacitance motor cables can have longer cable lengths between the converter and the motor than with comparable cables with PVC insulation
  • Optimum compliance with requirements for electromagnetic interference (EMI) by approx. 85% coverage from the braided shielding
  • These cables are produced to high quality specifications and conform to the DESINA®-standard
Note
  • Part No. 700402 with colour code
    2.5 mm² = brown, blue, black, green-gray
    0.34 mm² = DIN 47100
  • Brackets ( ) indicate screen
  • Desina®: Explanation: see introduction
Cable Accessories
  • Coming Soon!
