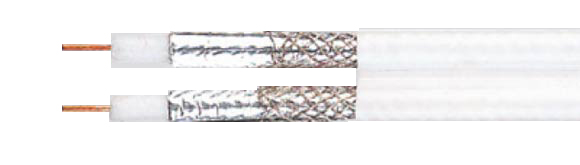

Up to 2150 MHz, for Satellite Receivers, Double Shielded, Cell PE-Insulated, Bare
Copper Conductor / Polyester
Foil Coated with Aluminum on
Both Sides, Braid, PVC Outer Jacket
SAT-MINI 1
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part
Number:40159 Add to Quote
Electrical
Characteristics
Impedance:
75± 3
Ohm
Approx.
Capacitance:
55.0 pF/m
Propagation
Velocity v/c:
0.82
Post Office
Approved:
-
Copper Weight:
30.0
Attenuation
at 20°C/68°F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
2150
MHz
8.0
11.5
18.5
23.5
25.5
31.0
35.5
39.5
43.0
Structural
Return Loss (min.):
30
and 300 MHz
300
and 600 MHz
600
and 960 MHz
960
and 2050 MHz
27
25
20
20
Direct
Current Resistance at 20°C/68°F:
Inner
Conductor max.
36.0
Ohm/km
Outer
Conductor max.
28.0
Ohm/km
Shielding
Efficiency (dB):
50
and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
78
78
75
75
Technical
Data
Helukabel
Electrical
Characteristics
Impedance:
75± 3
Ohm
Approx.
Capacitance:
55.0 pF/m
Propagation
Velocity v/c:
0.82
Post Office
Approved:
-
Copper Weight:
30.0
Attenuation
at 20°C/68°F (dB/100m):
100
MHz
200
MHz
500
MHz
800
MHz
950
MHz
1350
MHz
1750
MHz
2050
MHz
2150
MHz
8.0
11.5
18.5
23.5
25.5
31.0
35.5
39.5
43.0
Structural
Return Loss (min.):
30
and 300 MHz
300
and 600 MHz
600
and 960 MHz
960
and 2050 MHz
27
25
20
20
Direct
Current Resistance at 20°C/68°F:
Inner
Conductor max.
36.0
Ohm/km
Outer
Conductor max.
28.0
Ohm/km
Shielding
Efficiency (dB):
50
and 100 MHz
100
and 500 MHz
500
and 1000 MHz
1000
and 2050 MHz
78
78
75
75
Approvals
Cable
Construction
Inner
Conductor Ø mm:
0.8
Conductor Material:
Copper, bare
Insulation Ø mm:
3.5 Cell PE
Outer Conductor:
Polyester foil
coated with Aluminum on both
sides, Braid
Outer Jacket:
PVC
Jacket Color:
white
Outer Diameter
(approx.):
5.4 x 10.8 mm
Min. Bending
Radius:
40 mm
Weight (approx.):
62 kg/km
Note
The materials used in manufacture are
cadmium-free, contain no silicone
and are free from substances harmful to the
wetting properties of lacquers
AL = Aluminum, ALPR =
Polyester foil coated with Aluminum on
both sides, Cu =
Copper, CuW =
Copper-weld, F = Foil, G =
Braid, PE = Polyethylene, PEH =
Polyethylene air space insulation, PVC =
Polyvinylchloride, vz = Tinned
