Enclosures for Solar / Photovoltaic Applications

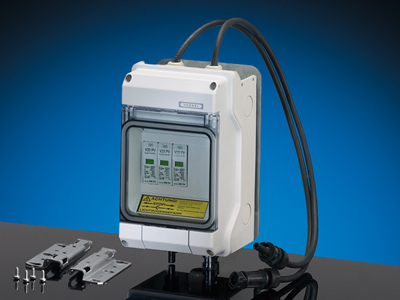

KV PV 1211 - DC Surge Protector

KV PV 1211 - DC Surge Protector
  Enlarge Picture
PV generator junction boxes

  • suitable for outdoor installation, UV resistant
  • ready for connection
  • with stainless steel mounting plate for wall and post installations
  • with transparent door
Technical Drawing
rated voltage: DC 1000 V (UOC STC)
rated current: DC 30 A
current per PV string: max. DC 30 A
plug-in connectors: compatible to MC4
SPD type: 2
nominal discharge current (8/20) 20 kA
max. outgoing surge current (8/20) 40 kA
protection level: at 5 kA (8/20): < 3.5 kV
at 20 kA (8/20): < 4 kV
protection class: II
degree of protection: IP 65
width: 126 mm
height: 205 mm
depth: 111 mm
color: gray RAL 7035

KVPV1211 Features & Applications

High quality Thermoplastic:
  • Impact-proof
  • Degree of protection IP 65
  • Color: Gray RAL 7035
  • Weather proof / Temperature resistant / Rainproof
  • UV-resistant
  • RoHS Compliant
