KF PV 0300 - Enclosures for Solar / Photovoltaic Applications

KF PV 0200 - Enclosures for Solar / Photovoltaic Applications
  Enlarge Picture

Technical Information
W 5.5" (139 mm) x H 4.7" (119 mm) x D 2.8" (70 mm)
  • insulated box for photovoltaic plants up to AC 690 V / DC 1000 V
  • "Outdoor - harsh environment and (or) outdoor"
  • box walls without knockouts
rated voltage: DC 1000 V
protection class II
degree of protection: IP 66
material: thermoplastic
mounting width 114 mm
mounting height 94 mm
max. installation depth 52 mm
color: black RAL 9011
cable entry wall surface can be drilled individually for cable entry max. M 32
height: 119 mm
depth 70 mm
width 139 mm


KFPV0300 Features & Applications

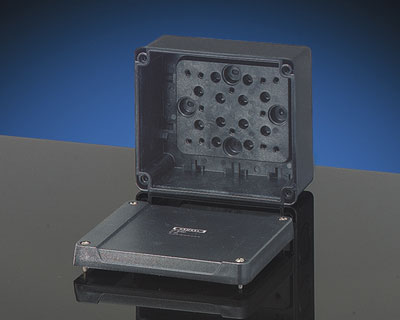

empty box KF PV 0300
Application area The enclosures are suitable for outdoor installation - harsh environment and / or outdoor. The material is examined for UV resistance by the institute for plastics and thereby suitable for the outdoor installation during UV effect. However the climatic influences and effects on the equipment are to be considered.
ambient temperature Average value over 24 hours + 35 C
Maximum value + 40 C
Minimum value - 5 C
Relative humidity 50% at 40 C 100% at 25 C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650C for boxes and cable glands - 850C for parts of insulating material necessary to retain current carrying parts in position
Burning behavior Glow wire test IEC 60 695-2-11: 960 C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK08 (5 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.
