Enclosure Home Page|Industrial Enclosures|Gray Thermoplastic Indoor/Outdoor Enclosures


KF 9250 - Thermoplastic Indoor/Outdoor Enclosures w/ Metric Knockouts

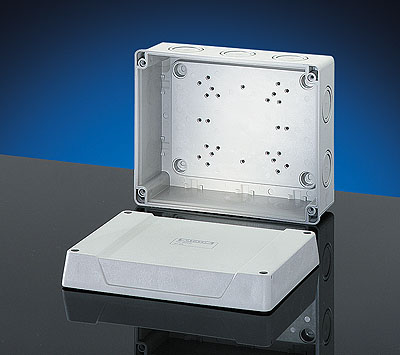

KF 9250, Liquid Tight Polycarbonate Enclosure (Indoor/Outdoor Installation), without Terminal Blocks, Type NEMA 4x, IP 65, Hi-Tech Controls, Hensel
  Enlarge Picture

KF 9250, Liquid Tight Polycarbonate Enclosure (Indoor/Outdoor Installation), without Terminal Blocks, Type NEMA 4x, IP 65, Hi-Tech Controls, Hensel
W 7.87" (200 mm) x H 6.30" (160 mm) x D 3.86" (98 mm)
Approval mark vde DNV German Lloyd
degree of protection: IP 66
mounting width 173 mm
mounting height 133 mm
material: Thermoplastic
max. installation depth 79 mm
color: gray RAL 7032
cable entry cable/conduit entry via metric knockouts order ASM separately (refer to index LES)
in accordance with IEC 60,670-22
in accordance with Det Norske Veritas Certificate No.: E-9149 Germanischer Lloyd Certificate No.: 12 941 - 11 HH Russian Maritime Register of Shipping, technical documentation is approved by the letter No. 250-011-2-39

SpacerAccessories Accessories
SpacerDetailed Dimensions Detailed Dimensions
SpacerHole Configuration: Hole Configuration: Number of Holes and Sizes

KF9250 Features & Applications

Cable junction box KF 9250
Application area Suitable for outdoor installation.
Resistant to occasional cleaning procedures (direct jet) Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner without additives, water pressure: max. 100 bar, water temperature: max. 80 C, distance => 0,15 m, in accordance with the requirements IP 69K, enclosure and cable glands at least IP 65
ambient temperature Average value over 24 hours + 55 C
Maximum value + 70 C
Minimum value - 25 C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650C for boxes and cable glands - 850C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards Demands placed on electrical installations and devices in areas and facilities subject to fire risk, e.g. DIN VDE 0100 Part 482, official regulations, VdS directives Minimum requirements - Glow wire test to IEC 60 695-2-11: - 850C for boxes and cable glands - 850C for cavity wall installation - Use of fire resistant cables
Burning behavior Glow wire test IEC 60 695-2-11: 960 C
UL Subject 94 V-0
flame resistant self-extinguishing
degree of protection against mechanical load IK08 (5 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
