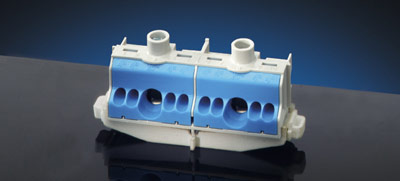

FC N 10 - FIXCONNECT® Plug-in Terminal

FC N 10 - FIXCONNECT® Plug-in Terminal
  Enlarge Picture

FC L 10
  Enlarge Picture



number x cross-section per N 2 x 25 mm²
8 x 4 mm²
conductor material Cu
conductor cross section f 2 x 1 x 1,5-25 mm²
r/f 2 x 1 x 10-25 mm²
sol 2 x 1 x 3 x 6 mm²
sol 2 x 1 x 4 x 4 mm²
conductor cross section sol 2 x 1 x 6 x 2,5 mm²
sol 2 x 1 x 6 x 1,5 mm²
sol/f 8 x 1 x 1,5-4 mm²
current carrying capacity 80 A
color blue
