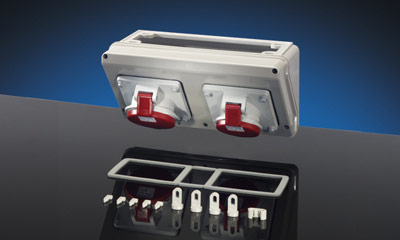

Mi CB 12 - Connection Box

Mi CB 12
  Enlarge Picture



  • for mounting to box walls 300 mm
  • with wall gasket
  • hinged mounting area
  • Receptacle with screwless-type terminals for connection, suitable for tapping
  • CEE receptacles according to EN 60 309
  • for sub-construction
  • for the lateral mounting the receptacles can be turned around 90°
16 A, 5-pole, 400 V, 50-60 Hz, 6h 1 items
32 A, 5-pole, 400 V, 50-60 Hz, 6h 1 items
degree of protection IP 44
protection class II
material high-quality polycarbonate
color gray RAL 7032
width 300 mm
height 150 mm
