Enclosure Home Page|Mi Series Selection|Mi Series Enclosure Accessories|Connection Boxes

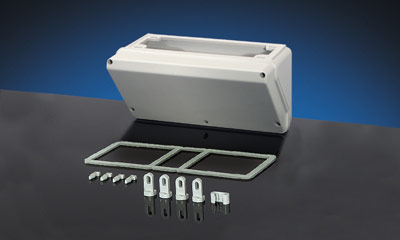

Mi CB 10 - Connection Box

Mi CB 10
  Enlarge Picture



  • for mounting to box walls 300 mm
  • with wall gasket
  • for the installation of devices that must be operated externally, such as plug devices, pushbuttons and switches
  • hinged mounting area
mounting width 240 mm
mounting height 125 mm
degree of protection IP 65
protection class II
material high-quality polycarbonate
color gray RAL 7032
width 300 mm
height 150 mm
depth 170 mm
