Enclosure Home Page|KG & KV Series Selection|KV Empty Enclosures

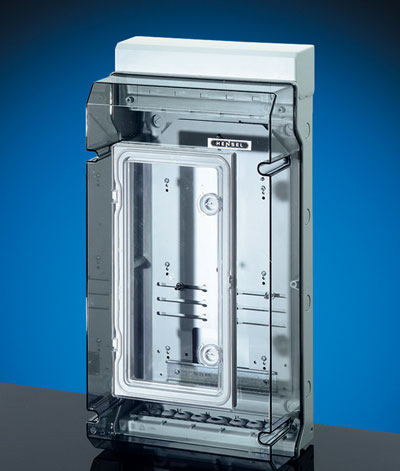

KV 9338 - Empty Enclosure - Meter Box

KV 9338
  Enlarge Picture

KV 9338
Enlarge Picture

- with additional DIN-Rail
- with KWH meter fastening plate and meter fastening screws
- with KWH meter window flap

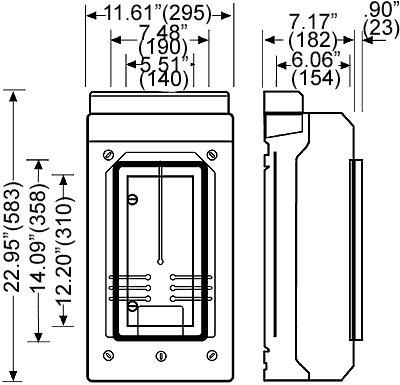

Outer Dimensions: (W) 11.61"(295) x (H) 22.95"(583) x (D) 7.17" (182) mm

  • with KWH meter fastening plate and meter fastening screws
  • cable entry via integrated elastic membranes
  • with cable entry cover
  • with transparent lid
  • sealable
  • fasteners for tool operation
  • use in unmetered area after consultation with local power supply companies
  • with additional DIN rail
  • length of DIN rail 172 mm
  • with KWH meter window flap, sealable
  • for tool or manual operation
  • for maximum KWH meters, time switches etc.
  • for padlock (clip � max. 6 mm)
  • standard opening dimensions 140 x 310 mm
  • Optional: Liquid Tight Strain Relief Fittings - IP 68 (Type NEMA 4x & 6)
max. installation depth 154 mm
degree of protection: IP 54
protection class II
material: thermoplastic
color: gray RAL 7035
Also available:
KV Distribution Boards/ Circuit Breaker Boxes
KV Distribution Boards / Circuit Breaker BoxesEnlarge Picture

SpacerAccessories Accessories
SpacerHole Configuration: Hole Configuration: Number of Holes & Sizes
SpacerBenefits Benefits

KV9338 Features & Applications

Application area IP 54/65 design: Suitable for indoor installation and outdoor installation, protected against weather influences IP 40/41 design: Suitable for installation in dry indoor areas
ambient temperature Maximum value + 60� C
Minimum value - 25� C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Burning behavior Glow wire test IEC 60 695-2-11: 750� C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK08 (5 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
