Enclosure Home Page|KG & KV Series Selection|KG Empty Enclosures

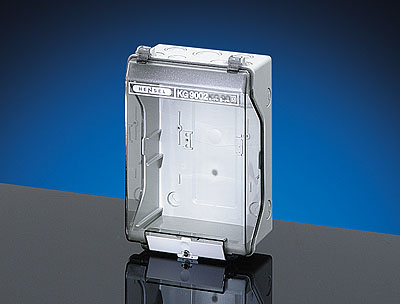

KG 9002 - Empty Enclosure

KG 9002, KG Series Empty Enclosures
  Enlarge Picture

KG 9002, KG Series Empty Enclosures
Enlarge Picture

For installation of DIN-Rail Equipment
Useable Space: (W) 5.24"(133) x (H) 8.07"(205) x (D) 3.74" (95) mm

max. installation depth with built-in mounting plate 95 mm
max. installation depth with built-in DIN rail 89 mm
mounting height 205 mm
mounting width 133 mm
degree of protection: IP 55 (ESM)
degree of protection: (refer to index LES) IP 65
protection class II
material: thermoplastic
color: gray RAL 7035

SpacerAccessories Accessories

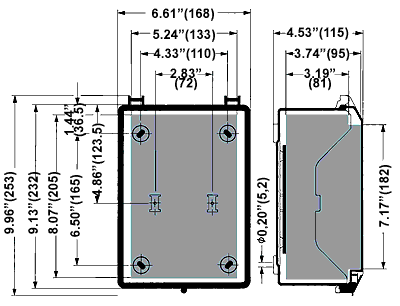

SpacerDetailed Dimensions Detailed Dimensions

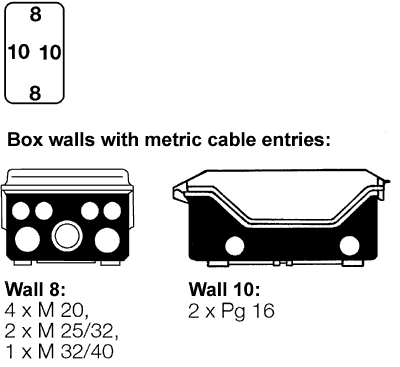

SpacerHole Configurations: Hole Configurations: Number of Holes & Size
SpacerBenefits Benefits

KG9002 Features & Applications

Application area IP 54/65 design: Suitable for indoor installation and outdoor installation, protected against weather influences IP 40/41 design: Suitable for installation in dry indoor areas
ambient temperature Maximum value + 60 C
Minimum value - 25 C
Fire protection in the event of internal faults Demands placed on electrical devices from standards and laws Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650C for boxes and cable glands - 850C for parts of insulating material necessary to retain current carrying parts in position
Burning behavior Glow wire test IEC 60 695-2-11: 750 C
UL Subject 94 V-2
flame resistant self-extinguishing
degree of protection against mechanical load IK08 (5 Joule)
Toxic behavior halogen-free silicone-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note: To material properties see technical data.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and cinema complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
