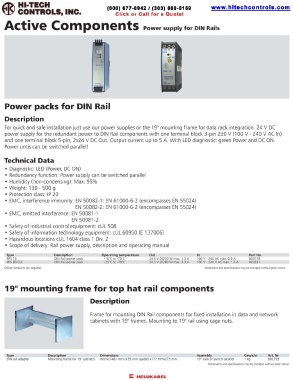

Active Components Power supply for DIN Rails

Power packs for DIN Rail

Description

For quick and safe installation just use our power supplies or the 19" mounting frame for data rack integration. 24 V DC
power supply for the redundant power to DIN Rail components with one terminal block 3-pin 230 V (100 V - 240 V AC In)
and one terminal block 5-pin, 2x24 V DC Out. Output current up to 5 A. With LED diagnostiC: green Power and DC ON.
Power untis can be switched parallel!

Technical Data

• Diagnostic: LED (Power, DC ON)
• Redundancy function: Power supply can be switched parallel
• Humidity (non-condensing): Max. 95%
• Weight: 130 - 500 g
• Protection class: IP 20
• EMC, interference immunity: EN 50082- 1: EN 61000-6-2 (encompasses EN 55024)
EN 50082-2: EN 61000-6-2 (encompasses EN 55024)
• EMC, emitted interference: EN 50081-1
EN 50081-2
• Safety of industrial control equipment: cUL 508
- Safety of information technology equipment: cUL 60950 (E 137006)
• Hazardous locations cUL 1604 class 1 Div. 2
• Scope of delivery: Rail power supply, description and operating manual
T,,,. Desc:ription Operating temperature Out In Part No.
1If'S 15 DIN Rolli powe! p.lck -urc 10 -10 C 24 5VOCIlOWIlWC, UA IOOV · 240ACnlix. 0.6A 803118
liPS 80 He DIN Rail pow« pack -25 CIO -10"( 24 5 V 0C/80 w 1lWC. 3.3 A 100 V - 240 V At max.. 1.6 A 803331
Other YI1I'~ons on reque$t.

19" mounting frame for top hat rail components

Description

Frame for mounting DIN Rail components for fixed installation in data and network
cabinets with 19~ frames. Mounting to 19" rail using cage nuts.

Art. Nr
"'". Description Dimensions Assembly Gewicht 802193
OIN rail ildaptl'l"
19" rad: or sWItch cabinet
lkg
Mountirog frame for 19' ubinets
WxttxD 481 mm (435 mm usable) _117 mlTlll275 mm
