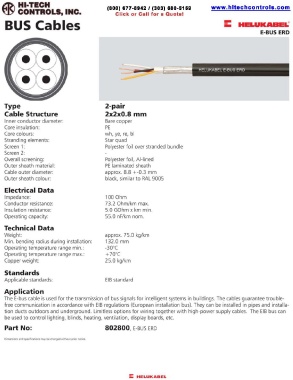

Page 57 - New Products 2010

i!I), HI·TECH (800) 877-8842 I (303) 880·5159 www.hltechcontrols.com
~ CONTROLS, INC. Click or Call for a Quotel

BUS Cables I: HEWKABEa:

E·BUS ERD

• HELUKABEl E·BUS ERD

Type 2-pair
Cable Structu re 2x2xO.8 mm
Inner conductor diameter: Bare copper
Core insulation: PE
Core colours: wh, ye, re, bl
Stranding elements: Star quad
Screen 1: Polyester foil over stranded bundle
Screen 2:
Overall screening: Polyester foil, AI-lined
Outer sheath material: PE laminated sheath
Cable outer diameter: approx. 8.8 +-0.3 mm
Outer sheath colour: black, similar to RAL 9005

Electrical Data
Impedance: 100 Ohm
Conductor resistance: 73.2 Ohmlkm max.
Insulation resistance: 5.0 GOhm x km min.
Operating capacity: 55.0 nF/km nom.

Technical Data
Weight approx. 75.0 kg/km
Min. bending radius during installation: 132.0 mm
Operating temperature range min.: -30' (
Operating temperature range max.: +70' (
(opper weight 25.0 kg/km
Standards
Applicable standards: EIB standard

Application
The E-bus cable is used for the transmission of bus signals for intelligent systems in buildings. The cables guarantee trouble·
free communication in accordance with EIB regulations (European installation bus). They can be installed in pipes and installa·
tion ducts outdoors and underground. limitless options for wiring together with high·power supply cables. The EIB bus can
be used to control lighting, blinds, heating, ventilation, display boards, etc.

Part No: 802800, E·BU5 ERD
