camozzi Index|FRL Units|Series MX|Accessories


camozzi

FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download
Rapid clamps kit for series MX

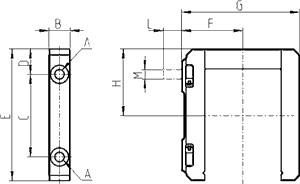

Rapid clamps kit Technical Drawing
The kit MX3-X is supplied with:
no. 1 rapid clamp, no. 1 O-ring OR 3150 **, no. 2 square nuts, no. 2 screws M6x75

The kit MX3-Z is supplied with:
no. 1 rapid clamp, no. 1 O-ring OR 3150 **, no. 1 square nut, no. 1 screw M6x75, no. 1 screw M6x90 for wall fixing
** it can be also separately ordered (cod. C401-F33)
Dimensions (in mm)
Part Number A B C D E F G H L M
MX3-X
6.2 14 54 16.5 86 40 77 43.5 - -
MX3-Z* 6.2 14 54 16.5 86 40 77 43.5 13 M6
* kit with wall fixing screw
