FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MX

Download & Save as PDF File PDF Download
Pressure gauges for panel mounting

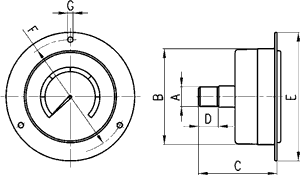

Pressure Gauge Technical Drawing
Dimensions (in mm)
Part Number A B C D E F G H J Range
M043-F04 R1/8 41 38 10 Ø 60.5 53 Ø 3.5 1.2 42.5 0-4 bar
M043-F06 R1/8 41 38 10 Ø 60.5 53 Ø 3.5 1.2 42.5 0-6 bar
M043-F10 R1/8 41 38 10 Ø 60.5 53 Ø 3.5 1.2 42.5 0-10 bar
M043-F12 R1/8 41 38 10 Ø 60.5 53 Ø 3.5 1.2 42.5 0-12 bar
M063-F12 R1/4 62 43 12 Ø 84 74.5 Ø 3.5 1.2 63.5 0-12 bar
To select the most suitable pressure gauge, the measurement range should be chosen considering the type of application according to the following criteria:
  1. Constant pressure or pressure with slow fluctuations should be within 75% of the maximun scale value.
  2. Pulsing pressure or rapid fluctuations should be within 65% of the maximum scale value.
  3. Pressure peaks should never exceed the maximum scale value.
