camozzi Index |

camozzi

Accessories for Cylinders Series 60 - Rear Trunnion, Male

Download & Save as PDF File PDF Download

Rear Trunnion, Male Rear Trunnion, Male Model L
Material: Aluminum
Supplied with: 2x Male Trunnion, 4x Screws

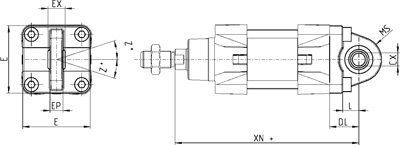

Technical Drawing
Part Number Ø CD L FL XD+ MR E EW torque force
L-41-32 32 10 12 22 142 9 45 26 6 Nm
L-41-40 40 12 15 25 160 13 52 28 6 Nm
L-41-50 50 12 15 27 170 13 63 32 13 Nm
L-41-63 63 16 20 32 190 15 73 40 13 Nm
L-41-80 80 16 24 36 210 15 95 50 19 Nm
L-41-100 100 20 29 41 230 18 115 60 22 Nm
L-41-125 125 25 30 50 275 25 135 70 26 Nm
+ = Add the stroke
