camozzi Index |

camozzi

Accessories for Cylinders Series 60 - Foot Mount

Download & Save as PDF File PDF Download

Foot Mount Foot Mount Model B
Material: Zinc-plated Steel
Supplied with: 2x Feet, 4x Screws

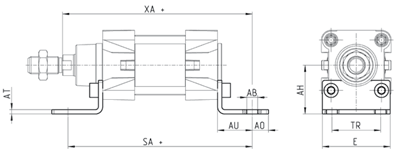

Technical Drawing
Part Number Ø AT SA+ XA+ TR E AB AH AO AU torque force
B-41-32 32 4 142 144 32 45 7 32 11 24 6 Nm
B-41-40 40 4 161 163 36 53,5 10 36 15 28 6 Nm
B-41-50 50 4 170 175 45 62,5 10 45 15 32 13 Nm
B-41-63 63 5 185 190 50 73 10 50 15 32 13 Nm
B-41-80 80 6 210 216 63 92 12 63 20 41 19 Nm
B-41-100 100 6 220 230 75 108,5 14,5 71 25 41 22 Nm
B-41-125 125 7 250 270 90 132 16,5 90 25 45 26 Nm
+ = Add the stroke
