camozzi Index |
camozzi

Accessories for Cylinders Series 60 - Rear Trunnion, Female
Download & Save as PDF File PDF Download

Rear Trunnion, Female Rear Trunnion, Female Model C and C-H
Material: Aluminum
Supplied with: 1x Female Trunnion, 4x Screws

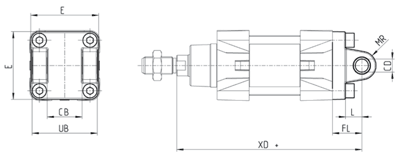

Technical Drawing
Part Number Ø CD L FL XD+ MR E CB UB torque force
C-41-32 32 10 12 22 142 10 45 26 45 6 Nm
C-41-40 40 12 15 25 160 13 52 28 52 6 Nm
C-41-50 50 12 15 27 170 13 63 32 60 13 Nm
C-H-41-63 63 16 20 32 190 15 73 40 70 13 Nm
C-H-41-80 80 16 24 36 210 15 95 50 90 19 Nm
C-H-41-100 100 20 29 41 230 18 115 60 110 22 Nm
C-H-41-125 125 25 30 50 275 25 135 70 130 26 Nm
+ = Add the stroke
