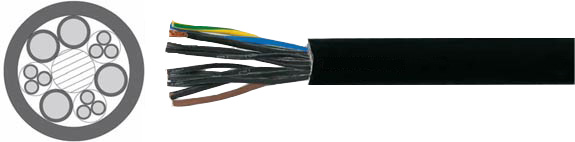

Special Cables: BAULIFTKABEL B101 / B102 / B103

Used for Power Supply and Control of Elevators in the Construction Industry
Special Cables, BAULIFTKABEL B101 / B102 / B103 Used for power supply and control of elevators in the construction industry, Hi-Tech Controls, European
BAULIFTKABEL B101 BAULIFTKABEL B101
BAULIFTKABEL B102 BAULIFTKABEL B102
BAULIFTKABEL B103 BAULIFTKABEL B103


BAULIFTKABEL B101
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
73519   B101 5x2.5 + 10x1.0 20.0 220.0 306.0 -
73913   B101 5x2.5 + 11x1.0 20.0 225.6 320.0 14
70402   B101 3x4.0 + 7x1.0 17.4 184.0 360.0 12
70931   B101 4x6.0 + 9x1.0 20.5 330.0 555.0 10
70377   B101 4x6.0 + 10x1.0 21.0 340.0 575.0 10
71901   B101 4x6.0 + 15x1.0 22.0 388.0 625.0 10
71369   B101 4x10.0 + 10x1.0 25.0 480.0 870.0 8
78123   B101 4x16.0 + 6x1.0 26.1 700.0 1250.0 6
78124   B101 4x16.0 + 10x1.0 29.0 710.0 1300.0 6
78125   B101 4x16.0 + 15x1.0 31.5 760.0 1380.0 6
73726   B101 4x16.0 + 1x2.5 + 4x1.0 28.5 830.0 1460.0 6
to top up arrow
BAULIFTKABEL B102
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
74293   B102 4x16.0 + 1x2.5 + 2x2x1.0 28.5 830.0 1080.0 6
74670   B102 4x16.0 + 1x2.5 + 2x2x1.0 28.5 787.0 1080.0 6
74297   B102 4x25.0 + 1x2.5 + 2x2x1.0 33.4 1176.0 1500.0 4
78122   B102 4x35.0 + 4x2.5 + 2x2x1.0 + 1x1.0 38.0 1500.0 1850.0 2

BAULIFTKABEL B103
Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
77532   B103 4x2.5 + 3x1.0 13.0 125.0 230.0 14
77538   B103 4x2.5 + 3x1.0 15.3 125.0 280.0 14
Technical Data European
  • Temperature Range
    Flexing
    -10°C to +80°C (+14°F to +176°F)
  • Nominal Voltage
    Control conductors 300/500 V
    Power supply conductors 0.6/1 kV
  • A.C. Test Voltage, 50 Hz
    Control conductors 1500 V
    Power supply conductors 3000 V
  • Minimum Bending Radius
    Approx. 10x cable diameters
Approvals
RoHSCE
Cable Construction
  • Bare copper wire, highly flexible
  • Conductor insulation of plastic, flexible at low temperatures, with number and green-yellow
  • Jacket of special plastic, flexible at low temperatures, black
  • Optional separate copper shielding of the control conductors
Application
These hybrid cables are used for power supply and control of vertical lifts in the construction industry. There are 3 cable versions.
B101: Here the cable is drawn vertically from a drum as a drag cable via the load platform. The load platform pulls the cable along as it moves up. During the downwards motion the cable returns to the drum automatically. Our special versions are used at heights of up to about 150 meter.
B102: For greater heights, a so-called carriage version is employed, in which the cable is fed at the center of the tower, i.e. half the way up.
B103: Here the cable is guided via a spring-loaded drum. These vertical construction lifts are used during new construction and renovation work on high buildings. The rack lattice elements are fastened at intervals to the exterior facade.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • Jacket UV-resistant
  • In carriage version with special support braiding and with PUR jacket particularly resistant to wear, oil, hydrolysis and microbial attack
Note
  • The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Cable Accessories
  • Coming Soon!
