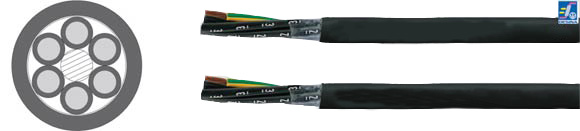

Special Cables: European TOPFLEX® 103/143

PVC/PUR, Flexible Control Cable, 0.6/1 kV

Hi-Tech Controls, Inc, European & Domestic cable

Special Cables, TOPFLEX® 103/143, PVC/PUR, Flexible control cable, 0.6/1 kV, Hi-Tech Controls, European
TOPSERV© 103 - PVC TOPFLEX© 103 - PVC
TOPSERV© 143 - PUR TOPFLEX© 143 - PUR

TOPFLEX© 103 - PVC
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
75941  TOPFLEX© 103 - PVC 4X1.5 9.9 58.0 141.0 16
75942  TOPFLEX® 103 - PVC 5X1.5 11.0 72.0 170.0 16
74788  TOPFLEX© 103 - PVC 7X1.5 13.3 101.0 225.0 16
74789  TOPFLEX© 103 - PVC 4X2.5 11.1 96.0 203.0 14
74790  TOPFLEX© 103 - PVC 5X2.5 12.4 120.0 251.0 14
74791  TOPFLEX© 103 - PVC 7X2.5 15.0 168.0 330.0 14
74792  TOPFLEX© 103 - PVC 4X4 13.8 154.0 310.0 12
74793  TOPFLEX© 103 - PVC 5X4 15.3 192.0 410.0 12
74794  TOPFLEX© 103 - PVC 7X4 16.8 269.0 540.0 12
74795  TOPFLEX© 103 - PVC 4X6 15.6 230.0 430.0 10
74796  TOPFLEX© 103 - PVC 5X6 17.3 288.0 650.0 10
76981  TOPFLEX© 103 - PVC 7X6 19.3 403.0 860.0 10
76382  TOPFLEX© 103 - PVC 4X10 18.6 384.0 790.0 8
76383  TOPFLEX© 103 - PVC 5X10 21.0 480.0 960.0 8
76384  TOPFLEX© 103 - PVC 7X10 23.1 672.0 1300.0 8
76385  TOPFLEX© 103 - PVC 4X16 21.5 614.0 1100.0 6
76386  TOPFLEX© 103 - PVC 5X16 24.1 768.0 1600.0 6
76387  TOPFLEX© 103 - PVC 7X16 31.0 1075.0 1890.0 6
76388  TOPFLEX© 103 - PVC 4X25 28.6 960.0 1600.0 4
76389  TOPFLEX© 103 - PVC 5X25 34.0 1200.0 2050.0 4
76390  TOPFLEX© 103 - PVC 7X25 50.0 1680.0 2900.0 4
76391  TOPFLEX© 103 - PVC 4X35 33.0 1344.0 2400.0 2
76392  TOPFLEX© 103 - PVC 5X35 37.0 1680.0 2900.0 2
76393  TOPFLEX© 103 - PVC 4X50 40.0 1920.0 3400.0 1
76394  TOPFLEX© 103 - PVC 5X50 42.1 2400.0 4360.0 1
71052  TOPFLEX© 103 - PVC 4X70 41.0 2688.0 4400.0 2/0
71113  TOPFLEX© 103 - PVC 4X95 46.2 3648.0 6010.0 3/0
to top up arrow
TOPFLEX© 143 - PUR
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper weight
kg/km
Weight
ca. kg/km
AWG
77716  TOPFLEX© 143 - PUR 4X1.5 9.9 58.0 141.0 16
77717  TOPFLEX© 143 - PUR 5X1.5 11.0 72.0 170.0 16
77718  TOPFLEX© 143 - PUR 7X1.5 13.3 101.0 225.0 16
77719  TOPFLEX© 143 - PUR 4X2.5 11.1 96.0 203.0 14
77720  TOPFLEX© 143 - PUR 5X2.5 12.4 120.0 251.0 14
77721  TOPFLEX© 143 - PUR 7X2.5 15.0 168.0 330.0 14
77722  TOPFLEX© 143 - PUR 4X4 13.8 154.0 310.0 12
77723  TOPFLEX© 143 - PUR 5X4 15.3 192.0 410.0 12
77724  TOPFLEX© 143 - PUR 7X4 16.8 269.0 540.0 12
77725  TOPFLEX© 143 - PUR 4X6 15.6 230.0 430.0 10
77726  TOPFLEX© 143 - PUR 5X6 17.3 288.0 650.0 10
77727  TOPFLEX© 143 - PUR 7X6 19.3 403.0 860.0 10
77728  TOPFLEX© 143 - PUR 4X10 18.6 384.0 790.0 8
77729  TOPFLEX© 143 - PUR 5X10 21.0 480.0 960.0 8
77730  TOPFLEX© 143 - PUR 7X10 23.1 672.0 1300.0 8
77731  TOPFLEX© 143 - PUR 4X16 21.5 614.0 1100.0 6
77732  TOPFLEX© 143 - PUR 5X16 24.1 768.0 1600.0 6
77733  TOPFLEX© 143 - PUR 7X16 31.0 1075.0 1890.0 6
77734  TOPFLEX© 143 - PUR 4X25 28.6 960.0 1600.0 4
77735  TOPFLEX© 143 - PUR 5X25 34.0 1200.0 2050.0 4
77736  TOPFLEX© 143 - PUR 7X25 50.0 1680.0 2900.0 4
77737  TOPFLEX© 143 - PUR 4X35 33.0 1344.0 2400.0 2
77738  TOPFLEX© 143 - PUR 5X35 37.0 1680.0 2900.0 2
77739  TOPFLEX© 143 - PUR 4X50 40.0 1920.0 3400.0 1
77740  TOPFLEX© 143 - PUR 5X50 42.1 2400.0 4360.0 1
Technical Data European
  • Special PVC Control cable based on DIN VDE 0281, 0245, 0250
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
  • Nominal Voltage U0/U 600/1000 V
  • A.C. Test Voltage, 50HZ
    4000 V
  • Insulation Resistance
    Min 20 MOhm x km
  • Minimum Bending Radius
    Flexing 7.5 x cable Ø
    Fixed installation 4 x cable Ø
Approvals
RoHS
Cable Construction
TOPFLEX® 103 - PVC
  • Bare copper, fine wire acc. to DIN VDE 0295 cl. 5 or IEC 60228 cl. 5
  • Special PVC conductor insulation
  • Black conductors with continuous white numbering according to DIN VDE 0293
  • Green-yellow grounding
  • Conductors stranded in layers with optimal lay-length
  • Special PVC jacket
  • Jacket color Black, acc. to DESINA®

TOPFLEX® 143 - PUR

  • Construction as above
  • Oil resistant PVC conductor insulation Tl2 adapted to DIN VDE 0207 part 4
  • Polyester fleece wrapping
  • PUR outer jacket
Application
These control cables are installed for power supply for three-phase motors. The 7-conductor cables are used for star-delta circuits. They are particularly suitable for use in mechanical systems, apparatus engineering, on production lines and in assembly equipment. These cables are suitable for flexible and fixed installation subjected to medium mechanical stress in dry, moist and wet areas.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • These cables conform to the DESINA® Standard.
  • TOPFLEX® 103 - PVC
    Special PVC jacket, largely oil resistant, self-extinguishing and flame retardant, test method B acc. to VDE 0472 part 804 and IEC 60332-1, chemical resistance.
  • TOPFLEX® 143 - PUR
    PUR outer jacket, low adhesion, abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack.
    Very high abrasion and notch resistant properties.
    Due to its high resistance to mineral oils and especially to coolant emulsions, it is suited for use in particularly critical areas.
Note
  • For applications with continuous movement, such as in energy supply chains, we recommend that you use our highly-flexible motor supply cables TOPSERV® 100 and TOPSERV® 101.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
