Pre-assembled Cable: PVC Connecting Cables

Hi-Tech Controls, Inc, European & Domestic cable

PVC Connecting Cables, Pre-assembled Cables, Hi-Tech Controls, European
European Part-No. Cable Type, cross-sec. mm2 Length (m) Plug Type Copper Weight
kg/1000 pcs.
AWG
Black White Gray
84412 84421 84416  H03VVH2-F 2x0.75 2 Euro Plug 28.8 18
84413 84417 84420  H03VVH2-F 2x0.75 5 Euro Plug 72.0 18
84419 84423 84422  H03VV-F 2x0.75 5 Euro Plug 72.0 18
84414 84418 84415  H03VV-F 2x0.75 3 Euro Plug 43.2 18
84426 84429 84424  H03VV-F 2x0.75 2 Central Contour Connector 28.8 18
86870 84428 84431  H03VV-F 2x0.75 5 Central Contour Connector 72.0 18
84425 84430 84427  H03VV-F 2x0.75 3 Central Contour Connector 43.2 18
87127 84434 87128  H05VV-F 2x1 2 Central Contour Connector 38.0 17
86867 84435 84432  H05VV-F 2x1 2 Central Contour Connector 38.0 17
86765 87130 84433  H05VV-F 2x1 3 Central Contour Connector 57.0 17
84438 86764 87575  H03VV-F 3G0.75 2 Protected Plug, straight 43.2 18
84442 84437 84436  H03VV-F 3G0.75 2 Protected Plug, straight 43.2 18
84441 84439 84440  H03VV-F 3G0.75 5 Protected Plug, straight 108.0 18
87748 84407 87277  H03VV-F 3G0.75 5 Protected Plug, angled 108.0 18
84400 84406 84446  H03VV-F 3G0.75 3 Protected Plug, angled 64.8 18
84447 84401 87725  H03VV-F 3G0.75 2 Protected Plug, angled 43.2 18
84452 84454 87140  H05VV-F 3G1 3 Protected Plug, straight 87.0 17
87138 84453 84450  H05VV-F 3G1 5 Protected Plug, straight 145.0 17
84451 87137 87139  H05VV-F 3G1 2 Protected Plug, straight 58.0 17
84408 87410 84459  H05VV-F 3G1 2 Protected Plug, angled 58.0 17
87074 84402 84409  H05VV-F 3G1 3 Protected Plug, angled 87.0 17
87141 84403 84460  H05VV-F 3G1 5 Protected Plug, angled 145.0 17
84470 84472 84466  H05VV-F 3G1.5 2 Protected Plug, straight 86.0 16
84465 84471 84469  H05VV-F 3G1.5 3 Protected Plug, straight 129.0 16
84467 84468 84464  H05VV-F 3G1.5 2 Protected Plug, straight 86.0 16
84405 84476 84475  H05VV-F 3G1.5 2 Protected Plug, angled 86.0 16
84410 87143 87142  H05VV-F 3G1.5 5 Protected Plug, angled 215.0 16
84411 84404 87503  H05VV-F 3G1.5 3 Protected Plug, angled 129.0 16
Technical Data European
  • Temperature range
    flexing -5°C to +70°C
  • Nominal voltage
    H03VV-F 300/700 V
    H05VV-F 300/700 V
  • Test voltage 2000 V
  • End 1: Connector
  • End 2: 30 mm stripped with wire end ferrule
Approvals
RoHS
Cable Construction
  • Plain copper conductor, fine wire stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383
  • PVC conductor insulation
  • conductor identification acc. to VDE color code
  • conductors stranded in layers
  • Green/yellow grounding (3 or more conductors)
  • PVC outer jacket
Application
H03VV-F
This cable is highly suitable as a hand tool connection for lightweight applications. It is often used as a connecting cable for households appliances.
H05VV-F
This cable is highly suitable as a hand tool connection for medium-weight applications. It can also be used in wet rooms. As a connecting cable for machine installation.
Properties

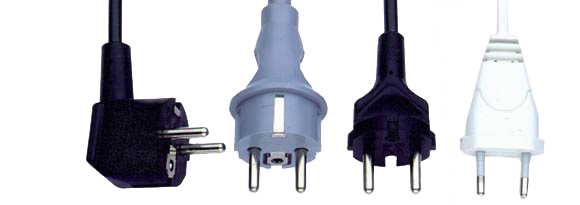

  • Plugs: Euro plug, Central contour connector or Protected plug (straight / angled)
Note
  • G = with green-yellow grounding, x = without grounding
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Cable Accessories
  • Coming Soon!
