RG-Coaxial Cables, RG-Type.../U 316, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Sealcon,

RG-Coaxial Cables

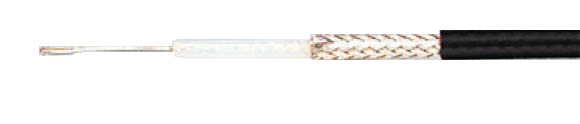

PTFE-Insulated, Steel / Silvered Copper Conductor / Silvered Copper Braid, PTFE / FEP Outer Jacket RG-Type.../U 316

Sealcon, Inc, European & Domestic cable

Part Number: 40203
Add to Quote
Quantity

Electrical Characteristics
Impedance: 50± 2 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.66
Approx. Capacitance: 95.0 pF/m
Rel. Velocity of Propagation: 70%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 310 Ohm/km
Nominal Peak Voltage: 1.2 kV
Dielectric Strength 50Hz kV eff. 2.0
Attenuation at 20°C (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz
28.0 40.0 68.0 90.0
Technical Data
Electrical Characteristics
Impedance: 50� 2 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.66
Approx. Capacitance: 95.0 pF/m
Rel. Velocity of Propagation: 70%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 310 Ohm/km
Nominal Peak Voltage: 1.2 kV
Dielectric Strength 50Hz kV eff. 2.0
Attenuation at 20�C (dB/100m):

100 MHz 200 MHz 500 MHz 800 MHz
28.0 40.0 68.0 90.0
Approvals
RoHS
Cable Construction
Inner Conductor � mm: 7 x 0.17
Conductor Material: Steel / Copper, Silvered
Insulation � mm: 1.52 PTFE
Outer Conductor: Braid: Silvered Copper
Outer Jacket: PTFE / alt. FEP
Min. Bending Radius: 15 mm
Temperature Range: -55�C to +200�C (-67�F to +392�F)
Copper Weight: 8.5 kg/km
Outer Diameter (approx.): 2.5 mm
Weight (approx.): 15 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • The color for PTFE outer jacket is black or transparent as per production outlet
  • RG-Coaxial types are in accordance with US-Military specifications MIL-C-17
  • RG/U: R=Radio, G=Guide, U=Utility
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
