Halogen-Free RG-Coaxial Cables

PE-Insulated, Tinned Copper Conductor / Bare Copper Braid, HM2 Outer Jacket RG-Type.../U 11

Hi-Tech Controls, Inc, European & Domestic cable

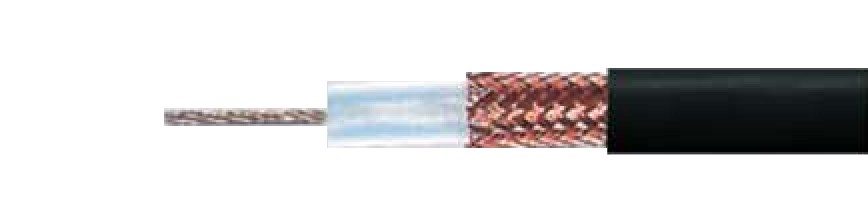

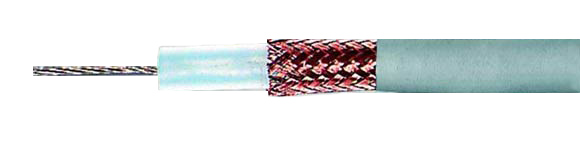

Halogen-free RG-Coaxial Cables, RG-Type.../U 11
Part Number: 40190
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 3 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.66
Approx. Capacitance: 68.0 pF/m
Rel. Velocity of Propagation: 67%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 23 Ohm/km
Nominal Peak Voltage: 5.0 kV
Dielectric Strength 50Hz kV eff. 10.0
Attenuation at 20°C (dB/100m):

3 MHz 10 MHz 100 MHz 200 MHz 500 MHz 800 MHz
1.3 2.4 7.8 11.3 18.7 23.4
Technical Data
Electrical Characteristics
Impedance: 75 3 Ohm
Frequency Range (max.): 3 GHz
Propagation Velocity v/c: 0.66
Approx. Capacitance: 68.0 pF/m
Rel. Velocity of Propagation: 67%
Insulation Resistance (min.): 105 MOhm x km
Loop Resistance (max.): 23 Ohm/km
Nominal Peak Voltage: 5.0 kV
Dielectric Strength 50Hz kV eff. 10.0
Attenuation at 20C (dB/100m):

3 MHz 10 MHz 100 MHz 200 MHz 500 MHz 800 MHz
1.3 2.4 7.8 11.3 18.7 23.4
Approvals
RoHSFRNC
Cable Construction
Inner Conductor mm: 7 x 0.4
Conductor Material: Tinned Copper
Insulation mm: 7.3 PE
Outer Conductor: Braid: Copper, Bare
Outer Jacket: HM2
Min. Bending Radius: 50 mm
Temperature Range: -35C to +80C (-31F to +176F)
Copper Weight: 58.0 kg/km
Outer Diameter (approx.): 10.3 mm
Weight (approx.): 144 kg/km
Application
Coaxial cables are used in high frequency transmission, especially for transmitters and receivers, computers, radio and TV transmissions where no flame propagation under behavior in fire is permitted. The varied mechanical, thermal and electronic properties of Coaxial cables mean that they can be used up into the GHz levels, as per cable type.
Note
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
  • H-outer jacket = halogen-free material HM2
  • RG-Coaxial types are in accordance with US-Military specifications MIL-C-17
  • RG/U: R=Radio, G=Guide, U=Utility
  • FRNC = Flame Retardant Non Corrosive
Cable Accessories
  • Coming Soon!
