Multimedia-Coaxial Cables

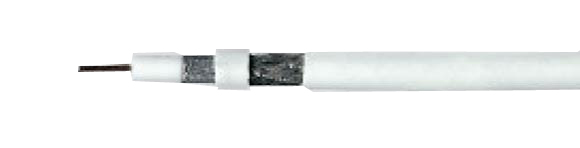

SAT 1.0 / 4.6 GH, Up to 2400 MHz, For Digital-Tv, Double Shielded, Shielding Efficiency >90 dB 1.0 / 4.6 GH-Y

Hi-Tech Controls, Inc, European & Domestic cable

Multimedia-Coaxial Cables, 1.0 / 4.6 GH-Y, Coaxial, Video & Loudspeaker Cables, RoHS Approved, RoHS Compliant, Hi-Tech Controls,
Part Number: 40176
Add to Quote
Quantity

Electrical Characteristics
Impedance: 75± 1 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.85
Shielding Efficiency: = 90 dB
Attenuation at +20°C/+68°F (dB/100m):

100 MHz 200 MHz 450 MHz 600 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2400 MHz
5.8 7.8 12.5 14.7 17.2 19.1 26.2 28.5 31.3
Structural Return Loss (min.):

30 - 300 MHz 300 - 600 MHz 600 - 960 MHz 960 - 1750 MHz 1750 - 2400 MHz
30 32 31 26 30
Direct Current Resistance at +20°C/+68°F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 20.0 Ohm/km

Screening Efficiency (dB) =. 90
Copper Weight kg/km 22.0
Technical Data
Electrical Characteristics
Impedance: 75 1 Ohm
Approx. Capacitance: 55.0 pF/m
Propagation Velocity v/c: 0.85
Shielding Efficiency: = 90 dB
Attenuation at +20C/+68F (dB/100m):

100 MHz 200 MHz 450 MHz 600 MHz 800 MHz 1000 MHz 1750 MHz 2050 MHz 2400 MHz
5.8 7.8 12.5 14.7 17.2 19.1 26.2 28.5 31.3
Structural Return Loss (min.):

30 - 300 MHz 300 - 600 MHz 600 - 960 MHz 960 - 1750 MHz 1750 - 2400 MHz
30 32 31 26 30
Direct Current Resistance at +20C/+68F:

Inner Conductor max. 18.0 Ohm/km
Outer Conductor max. 20.0 Ohm/km

Screening Efficiency (dB) =. 90
Copper Weight kg/km 22.0
Approvals
RoHS
Cable Construction Used as: Indoor/Oudoor
Inner Conductor mm: 1.0
Conductor Material: Copper with Skin
Insulation mm: 4.6 Cell PE with Skin and PIB Coating
Outer Conductor: Polyester Foil Coated with Aluminum on Both Sides
Outer Jacket: PVC
Jacket Color: White
Outer Diameter (approx.): 6.6 mm
Min. Bending Radius: 45 mm
Weight (approx.): 40 kg/km
Application
  • Copper inner-conductor 1.02 with skin-effect
    Protection against humidity and corrosion / Solid compound of dielectric. No change of position during installation in narrow bending radius.
  • Dielectric 4.6 mm : - special PE-compound, foaming by GAS-INJECTION
    Important improvement of propagation velocity values / Very high transmission speed of individual signals (presumption for Multimedia) / Improvement for the resistance to ageing / Reduction of attenuation-loss
  • The over surface of dielectric consists too a skin-coating (smooth over surface)
    Protection against humidity and other chemical influences / Minimum impedance tolerance 2 Ohm / This coaxial cable is crimpable / Installation in narrow bending radius, no kinking risk / The transmission-loss of signals are hardly measurable to the advance in years / Additionally to the skin-effect, the dielectric contains a gel-coating (special PIB-compound) / We therefore offer a 15 years guarantee for attenuation-loss by installation at 20C/+68F room-temperature
  • Shielding
    a) AL/PR-foil, polyester foil coated with aluminum on both sides or b) Copper braiding of tinned wires, shielding efficiency > 90 dB
  • Outer jacket
    Alternatives - PVC white for indoor and outdoor installation / PE black for underground laying or FRNC gray as a safety coaxial cable in hospitals, airports and for medical equipment etc. (other jacket colors on request)
Properties
  • n/a
Note
  • n/a
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
