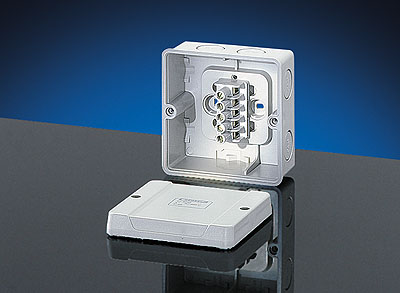

KF 9045 - Polycarbonate Indoor/Outdoor Enclosures
w/ Metric Knockouts & Terminal Block |
|
W 3.86"
(98 mm) x H 3.86" (98 mm) x D 2.40"
(61 mm)
|
| rated connecting capacity |
3~ 1.5-4 mm² |
|
| conductor material |
Cu |
|
| polarity |
5-pole |
|
| conductor cross section |
sol 6 x 1.5 mm²
sol 4 x 2.5 mm²
sol 3 x 4 mm²
sol 2 x 6 mm² |
|
| rated insulation voltage |
AC/DC 690 V |
|
| degree of protection |
IP 66 |
|
| material |
impact-resistant thermoplastic |
|
| color |
gray RAL 7032 |
|
| cable entry |
cable/conduit entry via metric knockouts |
|
|
|
KF9045 Features & Applications |
High quality Polycarbonate (PC-GFS):
- Glass-fiber reinforced, impact-proof
- Degree of protection IP 66
- Color: Gray RAL 7032
- Halogen-free and Silicone-free (low toxicity, low fume development)
- Fire-retardant & Self-extinguishing
- UL Subject 94 V-0
- Weather proof / Temperature resistant / Rainproof
- UV-resistant
- RoHS Compliant
- Stainless Steel fastening screws
- Accessories included in box
- Maintenance-free
- Cable Entry: Metric Knockouts
|
Application:
This Enclosure box is suitable for indoor and outdoor installation and harsh environments, protected against weather influences
according to DIN VDE 0100 Part 737.
Resistant to occasional cleaning procedures (direct jet) max. with high-pressure cleaner
without additives water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m box and cable entries at least IP 65.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
