| Enclosure
Home Page|Mi-Series Selection |Mi Empty Enclosures |

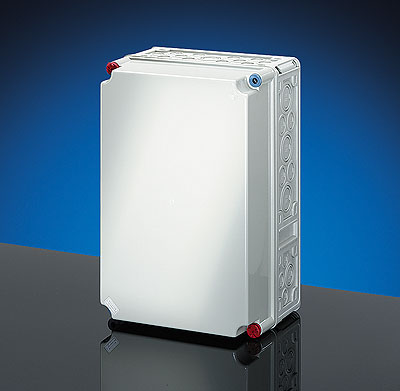

Mi 0311 - Empty Enclosure |
|
Housing/Lid: Polycarbonate, Opaque Lid, NEMA 4x (IP 65)

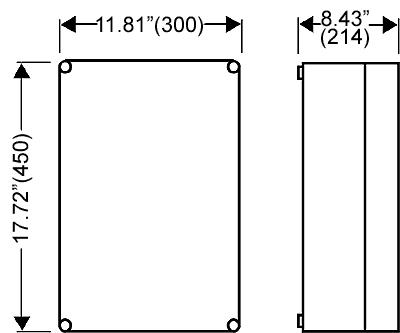

Useable Space: (W) 10.83"(275)
x (H) 16.73"(425) x (D) 7.52" (191)
mm
- Box Size 3
- Made of high quality PC-Polycarbonate
- Gray, RAL 7032
- Degree of protection NEMA 4x (IP
65)
- Locking device for tool operation
- Sealable
- DIN-rail or mounting plate should
be ordered separately
- Max. depth at installed mounting
plate: 191 mm
- Max. depth at installed mounting
rail: 180 mm
|
| |
|
|
Mi0311 Features & Applications |
High quality Thermoplastic PC (Polycarbonate):
- Impact Resistant
- Halogen-free and Silicone-free
- Flame-retardant & Self-extinguishing
- IP 65 - Dust proof & Jet water proof
- Limited UV Resistance
- RoHS Compliant
- Cable entry via Metric knockouts in all box walls possible
|
Application:
Mi Plastic Enclosure Boxes are suitable for indoor / outdoor installation and harsh environments due to their good resistance to weather influences. However, due to their limited UV Resistance, protection against direct sunlight should be provided if placed outdoors.
They are also resistant to chemicals (acids, lye, fuel & mineral oil).
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
