| Enclosure
Home Page|Mi-Series Selection |Mi Empty Enclosures, Hinged |
Mi 9221 has been
replaced by Mi 9201. |
|

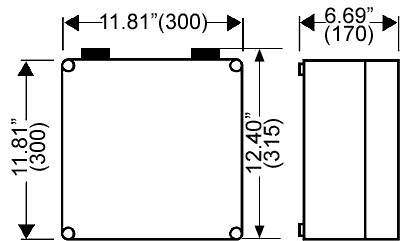

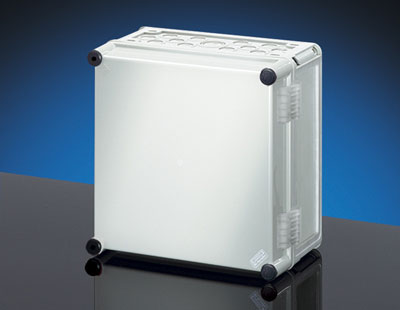

Mi 9201 - Hinged Empty Enclosure |
|
|
Housing/Lid: Polycarbonate, Opaque Hinged Lid, NEMA 4x (IP 65)

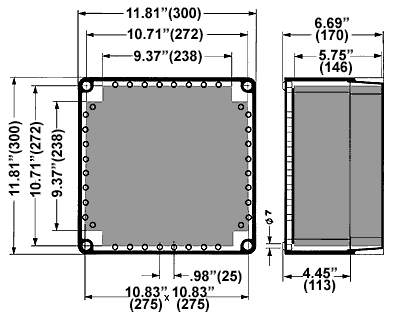

Useable Space: (W) 10.83"(275) x (H) 10.83"(275) x (D) 5.75" (146) mm
- Box Size 2

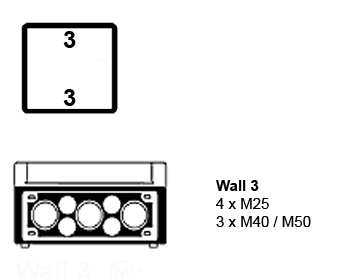

- 3 walls with metric knockouts for cable entry and assembly
- Lid fasteners for tool operation
- IP 65 rating
- Lid hinges attached
- DIN-rail or mounting plate should
be ordered separately
- Max. depth at installed mounting
plate: 146 mm
- Max. depth at installed mounting
rail: 135 mm
|
| |
|
|
Mi 9201 Features & Applications |
High quality Thermoplastic PC (Polycarbonate):
- Impact Resistant
- Halogen-free and Silicone-free
- Flame-retardant & Self-extinguishing
- IP 65 - Dust proof & Jet water proof
- Limited UV Resistance
- RoHS Compliant
- Cable entry via Metric knockouts in all box walls possible
|
Application:
Mi Plastic Enclosure Boxes are suitable for outdoor installation and harsh environments due to their good resistance to weather influences.
They are also resistant to chemicals (acids, lye, fuel & mineral oil).
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
 offers over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit Fittings System and Other Related Cable Management Products which are rated the best in the industry. |
 |
Liquid Tight Strain Relief, Cord Grips, Cable Gland Fittings: NPT, Metric, & PG Threads, Materials: Nylon, Nickel Plated Brass, PVDF (for chemicals and extreme temperatures) & Stainless Steel, NEMA 4x and 6 (IP68). |
 |
Circular Connectors (M16, M23, RJ45, M27 and M40): Signal (3-28 pin/socket configurations) & Power (6 & 8 pin/socket configurations). Push-Pull, Stainless Steel, Over Molded Cordsets & Industrial Ethernet. |
 |
Conduit System: Push-In and Turn-To-Seal Fittings: Straight and 90° Snap Elbow, Double-Seal Fittings, Snapclic DUO: Nylon & Nickel Plated Brass, Bulkhead/Flange, Flexible Corrugated Conduit. |
 |
Hazardous Location / Explosive Proof Cord Grips, Cable Glands: are stamped with the approvals on the products showing your application is EEx e or ATEX compliant.
Materials: Nylon, Nickel Plated Brass, PVDF & Stainless Steel. |
 |
Adapters, Enlargers, Reducers: Our Newest product line of Thread Adapters, Thread Reducers, Thread Enlargers! Available in Black or Gray Nylon, Nickel Plated Brass & Stainless Steel. |
 |
Cable Accessories: Locking Nuts, O-Rings, Seal Rings, Dome Plugs, Hex Plugs, Hole Plugs, Socket & Ratchet Wrenches, Multi-Hole & Romex® Inserts. |
 |
Hummel Enclosures: Made of Polycarbonate, ABS (Acryl-Butadiene-Styrene), Polystyrene, Aluminum, Steel/Stainless Steel, with Gray or Transparent Lids, available with Hinges and Latches, Plain Walls or Knockouts. |
|
