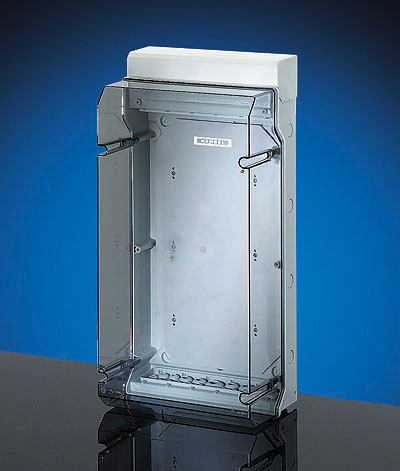

KV 9331 - Empty Enclosure |
|
For installation of DIN-Rail Equipment, Mounting Plate included

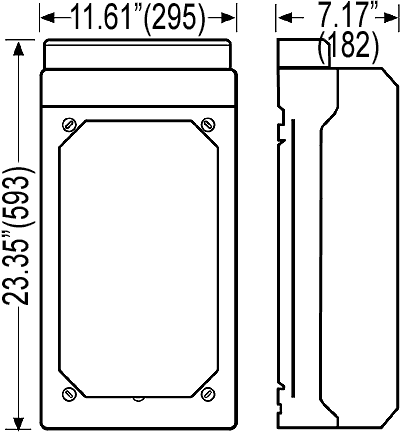

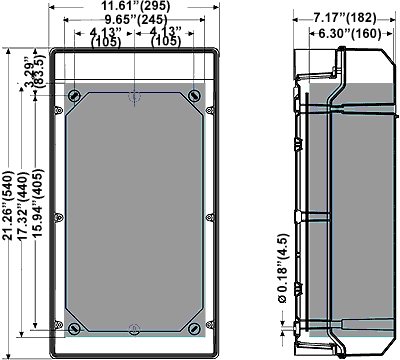

Useable
Space: (W) 9.65"(245)
x (H) 17.32"(440) x (D) 6.3" (160)
mm
- made of high quality thermoplastics,
gray, RAL 7035
- degree of protection IP 65 depending on Strain Relief Accessories
- sealable
- with transparent lid
- for installation of DIN-Rail
equipment on DIN-Rail or Mounting Plates
- for installation of switchgear by
means of installed mounting plates

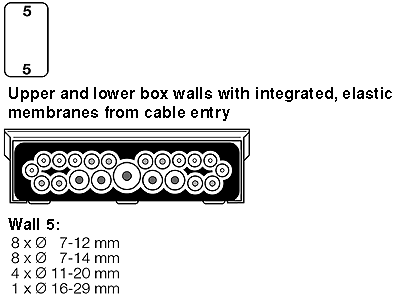

- cable entry via elastic membranes
- with cable entry cover, max. installation
depth 160 mm.
- Optional: Liquid
Tight Strain Relief Fittings - IP 68 (NEMA 4x & 6)
|
Also available:

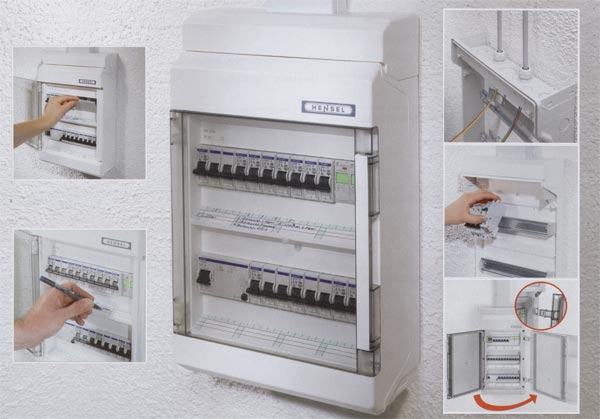

KV Distribution Boards/ Circuit Breaker Boxes |
|
|
|
|
KV9331 Features & Applications |
High quality Thermoplastics:
- IP 54 - IP 65
- Polystyrene Housing
- Impact Resistant Polycarbonate Lid
- Halogen-free and Silicone-free
- Flame-retardant & Self-extinguishing
- RoHS Compliant
- KG Empty Boxes: Cable entry via Metric knockouts
- KV Empty Boxes: Cable entry via Integrated Elastic Membrane
- Transparent Lid
|
Application:
IP 54/65 design: Suitable for indoor installation and outdoor installation, protected against
weather influences.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
 offers over 6,000 different Types and Sizes of RoHS Compliant Liquid Tight Strain Relief Fittings, Cord Grips, Cable Glands, Circular Connectors, Conduit Fittings System and Other Related Cable Management Products which are rated the best in the industry. |
 |
Liquid Tight Strain Relief, Cord Grips, Cable Gland Fittings: NPT, Metric, & PG Threads, Materials: Nylon, Nickel Plated Brass, PVDF (for chemicals and extreme temperatures) & Stainless Steel, NEMA 4x and 6 (IP68). |
 |
Circular Connectors (M16, M23, RJ45, M27 and M40): Signal (3-28 pin/socket configurations) & Power (6 & 8 pin/socket configurations). Push-Pull, Stainless Steel, Over Molded Cordsets & Industrial Ethernet. |
 |
Conduit System: Push-In and Turn-To-Seal Fittings: Straight and 90° Snap Elbow, Double-Seal Fittings, Snapclic DUO: Nylon & Nickel Plated Brass, Bulkhead/Flange, Flexible Corrugated Conduit. |
 |
Hazardous Location / Explosive Proof Cord Grips, Cable Glands: are stamped with the approvals on the products showing your application is EEx e or ATEX compliant.
Materials: Nylon, Nickel Plated Brass, PVDF & Stainless Steel. |
 |
Adapters, Enlargers, Reducers: Our Newest product line of Thread Adapters, Thread Reducers, Thread Enlargers! Available in Black or Gray Nylon, Nickel Plated Brass & Stainless Steel. |
 |
Cable Accessories: Locking Nuts, O-Rings, Seal Rings, Dome Plugs, Hex Plugs, Hole Plugs, Socket & Ratchet Wrenches, Multi-Hole & Romex® Inserts. |
 |
Hummel Enclosures: Made of Polycarbonate, ABS (Acryl-Butadiene-Styrene), Polystyrene, Aluminum, Steel/Stainless Steel, with Gray or Transparent Lids, available with Hinges and Latches, Plain Walls or Knockouts. |
|
