| Enclosure
Home Page|KG & KV Series Selection|KG Empty Enclosures |

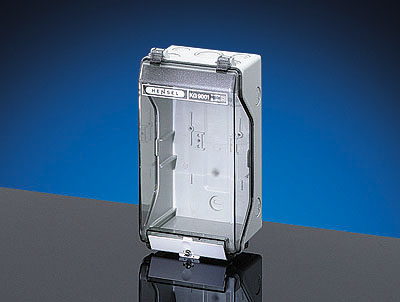

KG 9001 - Empty Enclosure |
|
For installation of DIN-Rail Equipment

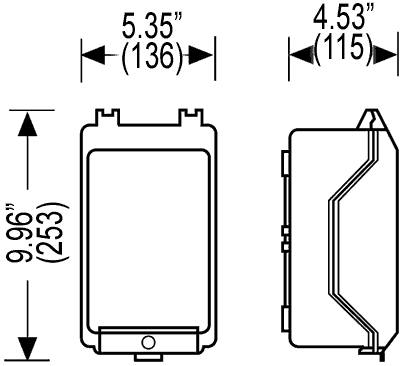

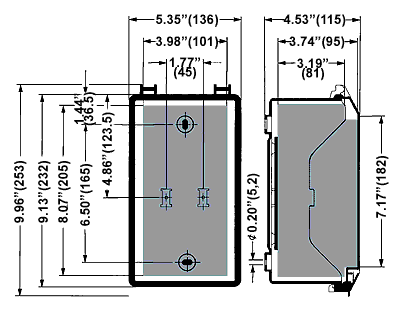

Useable
Space: (W) 4.0"(101)
x (H) 8.07"(205) x (D) 3.7" (95) mm
- made of high quality thermoplastics,
gray, RAL 7035
- degree of protection IP
55 / IP 65 depending on Strain Relief Accessories
- sealable
- with transparent hinged lid
- for installation of DIN-Rail
equipment on DIN-Rail or Mounting Plates
- max. installation depth
with installed mounting plates: 95 mm
- max. installation depth
with installed DIN Rails: 89 mm

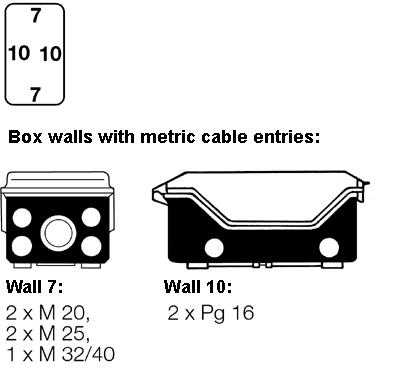

- cable entry via metric knockouts
- DIN Rail & Mounting
Plates should be ordered separately
- Optional: Liquid
Tight Strain Relief Fittings - IP 68 (NEMA 4x & 6)
|
| |
|
|
KG9001 Features & Applications |
High quality Thermoplastics:
- IP 54 - IP 65
- Polystyrene Housing
- Impact Resistant Polycarbonate Lid
- Halogen-free and Silicone-free
- Flame-retardant & Self-extinguishing
- RoHS Compliant
- KG Empty Boxes: Cable entry via Metric knockouts
- KV Empty Boxes: Cable entry via Integrated Elastic Membrane
- Transparent Lid
|
Application:
IP 54/65 design: Suitable for indoor installation and outdoor installation, protected against
weather influences.
Our products are used in the following areas of application:
- Companies involved in the processing of metal, wood and paper, cement factories
- Agricultural and food industries
- Water treatment and sewage plants, power stations and cold-storage depots
- Banks and insurance buildings
- Leisure and commercial centers
- Hotel and cinema complexes
- Hospitals and clinics
- Schools and universities
- Stadiums and sports centers
- Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
- Indoor and outdoor installations
|
|
|
|
|
