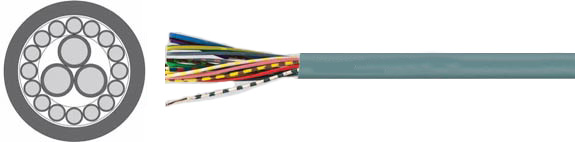

Helukabel Special Cables: VERTEILERFLEX
For Sensor Actuator Distributor Boxes, PVC, PUR or PVC/PUR
VERTEILERFLEX, for sensor actuator distributor boxes, PVC, PUR or PVC/PUR, RoHS Approved, RoHS Compliant, Helukabel, Hi-Tech Controls
Helukabel Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Conductor
Colors		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
black gray
76105 76115 VERTEILERFLEX 4X0.34 5.8 View Colors 18.0 58.0 22
76639 - VERTEILERFLEX 4X0.34 8.7 View Colors 36.0 82.0 22
76107 73574 VERTEILERFLEX 6X0.34 9.1 View Colors 42.0 106.0 22
72961 73993 VERTEILERFLEX 8X0.34 9.1 View Colors 48.0 110.0 22
76109 74729 VERTEILERFLEX 8X0.34 9.1 View Colors 41.0 107.0 22
76110 72951 VERTEILERFLEX 8X0.34 9.1 View Colors 41.0 107.0 22
76108 76117 VERTEILERFLEX 8X0.34 8.8 View Colors 36.0 102.0 22
71254 76118 VERTEILERFLEX 11X0.34 10.0 View Colors 65.0 143.0 22
76111 76119 VERTEILERFLEX 12X0.34 10.3 View Colors 61.0 138.0 22
- 77642 VERTEILERFLEX 16X0.34 12.5 View Colors 89.0 193.0 22
76112 76120 VERTEILERFLEX 16X0.34 10.5 View Colors 74.0 170.0 22
76113 76121 VERTEILERFLEX 8X0.5 9.3 View Colors 68.0 136.0 20
76114 76122 VERTEILERFLEX 12X0.5 10.4 View Colors 87.0 160.0 20
- 79921 VERTEILERFLEX 14X0.5 12.3 View Colors 125.0 201.0 20
76640 - VERTEILERFLEX 16X0.5 11.6 View Colors 106.0 183.0 20
74034 76123 VERTEILERFLEX 16X0.5 11.6 View Colors 106.0 183.0 20
Helukabel Part-No. Jacket Material Conductor Colors Fine
Wire 		High
Flex
black gray
76105 76115 PVC brown, blue, black, white, green-yellow X
 -
76639 - PVC/PUR yellow, white, green, gray, green-yellow, brown, blue -
 X
76107 73574 PVC/PUR white, green, yellow, gray, pink, red, brown, blue, green-yellow -
 X
72961 73993 PVC/PUR gray, pink, red, black, violet, white, green, yellow, brown,
blue, green-yellow 		-
 X
76109 74729 PVC white, green, yellow, gray, pink, red, black, violet, blue, brown X
 -
76110 72951 PUR white, green, yellow, gray, pink, red, black, violet, blue, brown -
 X
76108 76117 PVC/PUR white, green, yellow, gray, pink, red, black, violet, blue, brown -
 X
71254 76118 PVC black with number 1-2 + DIN 47100 X
 -
76111 76119 PVC/PUR pink, yellow-brown, red, gray-pink, white, red-blue, green,
white-green, yellow, brown-green, gray, white-yellow 		-
 X
- 77642 PVC/PUR blue with number 1-2 + green-yellow, green-pink, white, red-blue, green, white-green, yellow, brown-green, gray, white-yellow, pink, yellow-brown, red, white-gray, black, gray-brown, violet -
 X
76112 76120 PVC/PUR brown, gray-pink, red-blue, white-green, brown-green,
white-yellow, yellow-brown, gray-brown, blue, white,
green, yellow, gray, pink, red, black, violet, green-yellow 		-
 X
76113 76121 PUR brown, blue, green-yellow, gray-pink, red-blue, white-green,
brown-green, white, green, yellow, gray 		-
 X
76114 76122 PUR gray-pink, red-blue, white-green, brown-green, white-yellow,
yellow-brown, white, green, yellow, gray, pink, red, brown, blue, green-yellow 		-
 X
- 79921 PVC black with printing BR1, BR2, BL1, BL, numbers 1-14 X
 -
76640 - PVC/PUR gray, brown-green, green, red-blue, gray-pink, white, white-green, white-gray, black, white-yellow, pink, yellow, red, yellow-brown, violet, gray-brown, green-yellow, brown, blue -
 X
74034 76123 PUR

gray-pink, white, red-blue, green, white-green, yellow,
brown-green, gray, white-yellow, pink, yellow-brown, red,
white-green, black, violet, brown, blue, green-yellow

-
 X
Technical Data Helukabel
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Operating Voltage
    U0/U 300/500 V
  • A.C. Test Voltage, 50 Hz
    2000 V
  • Minimum Bending Radius
    Highly flexible approx. 7.5x cable Ø
    Flexible approx. 15x cable Ø
Approvals
RoHSCE
Cable Construction
  • PVC cables
    • Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 5 and/or cl. 6 and/or IEC 60228 cl. 5 and cl. 6
    • PVC conductor insulation
    • Conductor colors see below
    • Special PVC jacket
  • PUR cables
    • Bare copper, extra fine wire conductor to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
    • PVC conductor insulation
    • Conductor colors see below
    • PUR jacket
Application
These cables are used in connector systems for sensors and actuators.
In combination with injected circular connectors and installed sensor-actuator boxes, they constitute an important connecting element between the periphery and the PLC in production systems.
The assembled cables offer an attractive opportunity to reduce costs, not only in the field of automation technology, but also in the entire manufacturing industry.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • PVC cables
    • Extensively oil resistant
      Chemical Resistance - see table Technical Information
    • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • PUR cables
    • Low adhesion, extremely abrasion resistant, resistant to hydrolysis and microbial attack
  • Special feature
    • The cables with the highly flexible stranded conductor, cl. 6, are suitable for drag chain applications
    • The types with PVC/PUR jacket material have a PVC inner jacket, with a PUR jacket applied over it by means of coextrusion
Note
  • All cables can be delivered with UL/CSA approval and copper shield
  • Further conductor numbers, cross-sections and jacket colors available on request
Cable Accessories
  • Coming Soon!
