Servo, Feedback & Motor Cable: TOPSERV® 137/138 |
| PVC jacket, Flexible motor supply cable, 0.6/1 kV, EMI preferred type UL/CSA |
| According to SIEMENS Standard 6FX 5008- |
|
|
|
- Special PVC motor supply cable acc.
to UL AWM Style 21179 and CSA AWM
- Based on DIN VDE 0281, 0245, 0250,
0281
- Temperature Range
Flexing -5°C to
+80°C
Fixed Installation -40°C to +80°C
- Nominal Voltage
acc. to VDE U0/U 600/1000
V
acc. to UL/CSA 1000 V
|
- A.C. Test Voltage,
50 Hz 4000 V
- Insulation Resistance
min. 20 MOhm x km
- Coupling Resistance
max. 250 Ohm/km
- Minimum Bending Radius
for flexible installation
approx. 20 x cable Ø
Fixed Installation
approx. 4x cable Ø
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors x cross-sec. mm2 |
Outer
Diameter |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
77242 |
TOPSERV 137 4x1,5 |
13.0 |
133.0 |
265.0 |
16 |
77243 |
TOPSERV 137 4x2,5 |
15.5 |
190.0 |
375.0 |
14 |
77244 |
TOPSERV 137 4x4 |
17.8 |
252.0 |
500.0 |
12 |
77245 |
TOPSERV 137 4x6 |
19.0 |
356.0 |
620.0 |
10 |
77246 |
TOPSERV 137 4x10 |
25.0 |
530.0 |
1035.0 |
8 |
77247 |
TOPSERV 137 4x16 |
27.7 |
796.0 |
1345.0 |
6 |
77248 |
TOPSERV 137 4x25 |
33.0 |
1165.0 |
2000.0 |
4 |
77249 |
TOPSERV 137 4x35 |
36.8 |
1714.0 |
2645.0 |
2 |
77250 |
TOPSERV 137 4x50 |
43.0 |
2397.0 |
3850.0 |
1 |
700439 |
TOPSERV
137 4x70 |
48.3 |
3090.0 |
4600.0 |
2/0 |
|
|
. |
|
| Part-No. |
Description & No.
Conductors x cross-sec. mm2 |
Outer
Diameter |
SIEMENS
Part No. |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
77251 |
TOPSERV 138 4x1,5 |
11.0 |
6FX5008-1BB11 |
131.0 |
150.0 |
16 |
77252 |
TOPSERV 138 4x2,5 |
13.0 |
6FX5008-1BB21 |
187.0 |
230.0 |
14 |
77253 |
TOPSERV 138 4x4 |
15.3 |
6FX5008-1BB31 |
247.0 |
315.0 |
12 |
77254 |
TOPSERV 138 4x6 |
16.4 |
6FX5008-1BB41 |
349.0 |
450.0 |
10 |
77255 |
TOPSERV 138 4x10 |
22.7 |
6FX5008-1BB51 |
520.0 |
710.0 |
8 |
77256 |
TOPSERV 138 4x16 |
25.0 |
6FX5008-1BB61 |
780.0 |
1040.0 |
6 |
77257 |
TOPSERV 138 4x25 |
30.0 |
6FX5008-1BB25 |
1142.0 |
1500.0 |
4 |
77258 |
TOPSERV 138 4x35 |
33.6 |
6FX5008-1BB35 |
1683.0 |
1995.0 |
2 |
77259 |
TOPSERV 138 4x50 |
40.0 |
6FX5008-1BB50 |
2349.0 |
2755.0 |
1 |
700440 |
TOPSERV 138 4x70 |
45.0 |
6FX5008-1BB70 |
3090.0 |
3500.0 |
2/0 |
|
|
| |
|

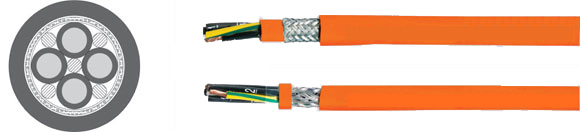

- TOPSERV® 137
- Bare copper, fine wire in acc.
with DIN VDE 0295 cl. 5 and IEC
60228 cl. 5
- Special PVC conductor insulation
- Black conductors with continuous white
numbering acc. to DIN VDE 0293
- Green-yellow grounding
- Conductors stranded in layers with
optimal lay-length
- PVC inner jacket
- Tinned copper braided shielding,
coverage approx. 85%
- Special PVC jacket
- Jacket color orange (RAL 2003)
according to DESINA®
TOPSERV® 138
- Construction as per TOPSERV® 137,
- except without PVC inner jacket
|
|
|
- Special PVC jacket: largely oil-resistant,
self-extinguishing and flame retardant,
test method B acc. to VDE 0472 part 804
and IEC 60332-1,
chemical resistance (see table Technical
information)
- Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approx. 85% coverage from the braided
shielding
- These cables
are produced to high quality specifications
and conform to the DESINA®-standard.
|
|
|
- For applications
with continuous movement, such as in
energy supply chains, we recommend
that you use our highly-flexible motor
supply cables TOPSERV® 100 and TOPSERV® 101,
TOPSERV ® 109.
- Desina®:
Explanation: see introduction.
|
|
Used as supply cables for electronically
controlled servomotors, frequency
converters and for connection
to DNC motors. These cables are
suitable for flexible and fixed
installation subjected to medium
mechanical stresses in dry, moist
and wet rooms.
Particularly recommended as a
supply cable between frequency
converters and servomotors.
EMI = Electromagnetic
Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
