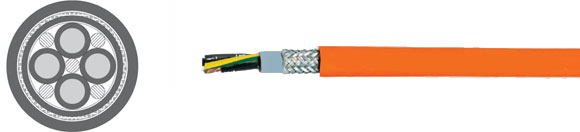

Servo, Feedback & Motor Cable: TOPSERV® 103 |
| Halogen-Free, Jacket PUR, UL/CSA, Highly Flexible, Drag Chain Cable 0.6/1 kV, EMI Preferred Type |
|
|
|
- Special PUR drag chain cable
acc. to UL AWM Style 20235 CSA
AWM
- Temperature Range
Flexing
-40°C to +80°C (-40°F to +176°F)
Fixed Installation
-50°C to
+80°C (-58°F to +176°F)
- Nominal Voltage
Acc. to UL/CSA 1000 V
Acc. to VDE U0/U 600/1000
V
|
- A.C. Test Voltage,
50 Hz
4000 V
- Insulation Resistance
Min. 20 MOhm x km
- Minimum Bending Radius
Approx. 7.5x cable diameters
- Coupling Resistance
Max. 250 Ohm/km
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors x cross-sec. mm2 |
Outer
Diameter |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
| 79704 |
TOPSERV
103 4x1.5 |
12.2 |
95.0 |
240.0 |
16 |
| 79705 |
TOPSERV
103 4x2.5 |
13.4 |
150.0 |
310.0 |
14 |
| 79706 |
TOPSERV
103 4x4 |
15.0 |
235.0 |
495.0 |
12 |
| 79707 |
TOPSERV
103 4x6 |
17.1 |
320.0 |
640.0 |
10 |
| 79708 |
TOPSERV
103 4x10 |
20.8 |
533.0 |
870.0 |
8 |
| 78989 |
TOPSERV
103 4x16 |
26.0 |
794.0 |
1300.0 |
6 |
| 79709 |
TOPSERV
103 4x25 |
29.5 |
1236.0 |
1900.0 |
4 |
| 79710 |
TOPSERV
103 4x35 |
34.0 |
1662.0 |
2650.0 |
2 |
| 79711 |
TOPSERV
103 4x50 |
38.7 |
2345.0 |
3050.0 |
1 |
| 700447 |
TOPSERV
103 4x70 |
44.5 |
3090.0 |
4600.0 |
2/0 |
|
|
. |
|
|
- Bare copper, ultra-fine wire acc.
to DIN VDE 0295 cl. 6 or IEC 60228
cl. 6
- TPE-E conductor insulation, halogen-free
- Black conductors with sequential
numbering imprinted in white, acc.
to DIN VDE 0293
- Green-yellow grounding
- Conductors stranded together around
center with optimal lay-length
- TPE inner jacket filler
- Tinned copper braided shielding,
coverage approx. 85%
- Fleece wrapping facilitates sliding
- PUR outer jacket
- Jacket color: Orange
(RAL 2003) according to DESINA®
|
|
|
- PUR outer jacket: low adhesion,
flame retardant, extremely abrasion
resistant, halogen-free, resistant
to UV, oil, hydrolysis and microbial
attack
- PUR jacket self-extinguishing and
flame retardant, test method B acc.
to VDE 0472 part 804 and IEC 60332-1
- Optimized insulation materials ensure
resistance to oils (including mineral
oils), greases, coolants, hydraulic
fluids as well as many alkalis and
solvents
- Optimum compliance with requirements
for electromagnetic interference (EMI)
by approx. 85% coverage from the braided
shielding
- These cables are produced to high
quality specifications and conform
to the DESINA®-standard.
- The inner jacket
filler holds the stranded elements
together in a compact unit. This prevents
the individual conductors from working
their way free and forming a "corkscrew".
The inner jacket improves the torsion
characteristics of the cable, resulting
in significantly longer service life
|
|
|
- For extreme applications extending
beyond standard solutions we recommend
that you request our questionnaire,
which has been especially designed
for energy supply systems.
- Please observe applicable installation
regulations for use in energy supply
chains.
- Desina®: Explanation:
see introduction.
|
|
Supply
cable optimized especially for
the supply of DNC motors. These
cables are specially designed
for use in power drag chains,
handling equipment, robotics,
tooling machinery, processing
and manufacturing machinery.
The optimized outside diameter,
reduced weight and excellent
torsion characteristics facilitate
use in multi-shift operation
with extreme alternating bending
stress cycles.
Particularly recommended as a
supply cable between frequency
converters and servomotors.
EMI =
Electromagnetic
Interference
To optimize the EMI features
we recommend a large round contact
of the copper braiding on both
ends.
 =
The
product
is
conformed
with
the
EC
Low-Voltage
Directive
73/23/EEC
and
93/68/EEC. |
|
|
|
|
|
|
