Servo, Feedback & Motor Cable: TOPSERV® 102
/ 115 |
| PVC Highly flexible, drag chain cable 0.6/1 kV, EMI preferred type |
|
|
|
- Special PVC servo cable adapted to
DIN VDE 0281, 0245, 0250
- Temperature Range
Flexing -5°C to
+80°C
Fixed Installation -40°C to +80°C
- Nominal Voltage U0/U
600/1000 V
- A.C. Test Voltage,
50 Hz 4000 V
|
- Insulation Resistance
min. 20 MOhm x km
- Minimum Bending Radius
Flexing 20x cable Ø
Fixed Installation 6x cableØ
- Coupling Resistance
max. 250 Ohm/km
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors x cross-sec. mm2 |
Outer
Diameter |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
74395 |
TOPSERV 102 4x1,5 |
13.0 |
133.0 |
265.0 |
16 |
74396 |
TOPSERV 102 4x2,5 |
15.5 |
190.0 |
375.0 |
14 |
74397 |
TOPSERV 102 4x4 |
17.8 |
252.0 |
500.0 |
12 |
74398 |
TOPSERV 102 4x6 |
19.0 |
356.0 |
620.0 |
10 |
74399 |
TOPSERV 102 4x10 |
25.0 |
530.0 |
1035.0 |
8 |
74400 |
TOPSERV 102 4x16 |
27.7 |
796.0 |
1345.0 |
6 |
74401 |
TOPSERV 102 4x25 |
33.0 |
1165.0 |
2000.0 |
4 |
74402 |
TOPSERV 102 4x35 |
36.8 |
1714.0 |
2645.0 |
2 |
74403 |
TOPSERV 102 4x50 |
43.0 |
2397.0 |
3850.0 |
1 |
|
|
. |
|
| Part-No. |
Description & No.
Conductors x cross-sec. mm2 |
Outer
Diameter |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
76315 |
TOPSERV 115 4x1,5 |
11.0 |
131.0 |
150.0 |
16 |
76316 |
TOPSERV 115 4x2,5 |
13.0 |
187.0 |
230.0 |
14 |
76317 |
TOPSERV 115 4x4 |
15.3 |
247.0 |
315.0 |
12 |
76318 |
TOPSERV 115 4x6 |
16.4 |
349.0 |
450.0 |
10 |
76319 |
TOPSERV 115 4x10 |
22.7 |
520.0 |
710.0 |
8 |
76320 |
TOPSERV 115 4x16 |
25.0 |
780.0 |
1040.0 |
6 |
76321 |
TOPSERV 115 4x25 |
30.0 |
1142.0 |
1500.0 |
4 |
76322 |
TOPSERV 115 4x35 |
33.6 |
1683.0 |
1995.0 |
2 |
76323 |
TOPSERV 115 4x50 |
40.0 |
2349.0 |
2755.0 |
1 |
|
|
| |
|

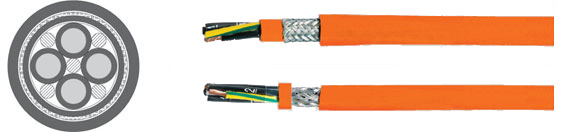

- TOPSERV
102®
- Bare copper, fine wire conductors
acc. to DIN VDE 0295 cl. 5 and
IEC 60228 cl. 5
- Special-PVC conductor insulation
- Black conductors with sequential numbering
imprinted in white, acc. to DIN
VDE 0293
- Green-yellow grounding
- Conductors stranded together with
optimal lay-length
- Inner jacket PVC
- Tinned copper braided shielding,
coverage approx. 85%
- Special-PVC outer jacket
- Jacket
color orange (RAL 2003) according
to DESINA®
TOPSERV
115®
- Construction
as per TOPSERV® 102,
but
- without PVC inner jacket
|
|
|
- Extensively oil resistant.
Chemical Resistance - see table Technical
Informations
- PVC self-extinguishing and flame retardant
according to DIN VDE 0482 part 50265-2-1/
IEC 60332-1 (equivalent DIN VDE 0472
part 804 test method B)
- Optimum compliance with requirements
for electromagnetic compatibility (EMC)
by approx. 85% coverage from the braided
shielding
- These cables
are produced to high quality specifications
and conform to the DESINA®-standard.
|
|
|
- For applications
with continuous movement, such as in
energy supply chains, we recommend
that you use our highly-flexible motor
supply cables TOPSERV® 100 and TOPSERV® 101.
- Desina®:
Explanation: see introduction.
|
|
Used as supply cables for electronically
controlled servomotors, frequency
converters and for connection
to DNC motors. These cables are
suitable for flexible and fixed
installation subjected to medium
mechanical stresses in dry, moist
and wet rooms.
Particularly recommended as a
supply cable between frequency
converters and servomotors.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
