European Servo, Feedback & Motor Cable:

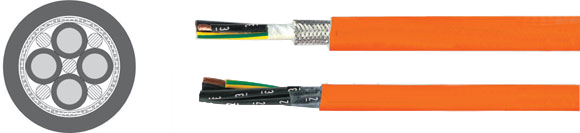

TOPSERV® 100 / 101

halogen-free, jacket PUR, VDE Reg. No. Highly flexible, drag chain motor supply cable 0,6/1 kV, EMI preferred type

Sealcon, Inc, European & Domestic cable

TOPSERV 100 & TOPSERV 101, Jacket PUR, VDE Reg. No., Highly Flexible Drag , European  , Sealcon
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG

74422

 TOPSERV 100 4x1,5

9.5 58.0 134.0 16

74423

 TOPSERV 100 4x2,5

10.9 96.0 206.0 14

74424

 TOPSERV 100 4x4

12.5 154.0 283.0 12

74425

 TOPSERV 100 4x6

14.5 231.0 408.0 10

74426

 TOPSERV 100 4x10

18.1 384.0 643.0 8

74427

 TOPSERV 100 4x16

22.4 615.0 945.0 6

74428

 TOPSERV 100 4x25

26.4 960.0 1368.0 4

74429

 TOPSERV 100 4x35

31.2 1344.0 1819.0 2

74430

 TOPSERV 100 4x50

35.8 1920.0 2515.0 1

700434

 TOPSERV 100 4x70

41.5 2688.0 4090.0 2/0
European
Part-No.
Description & No. Conductors x cross-sec. mm2 Outer
Diameter
mm
Copper Weight
kg/km
Weight
ca. kg/km
AWG
74408  TOPSERV 101 4x1,5 10.0 105.0 140.0 16
74409  TOPSERV 101 4x2,5 11.7 158.0 215.0 14
74410  TOPSERV 101 4x4 12.8 232.0 295.0 12
74411  TOPSERV 101 4x6 15.0 333.0 425.0 10
74412  TOPSERV 101 4x10 18.0 527.0 670.0 8
74413  TOPSERV 101 4x16 22.0 794.0 985.0 6
74414  TOPSERV 101 4x25 27.5 1180.0 1425.0 4
74415  TOPSERV 101 4x35 32.0 1603.0 1895.0 2
74416  TOPSERV 101 4x50 36.7 2165.0 2620.0 1
700435  TOPSERV 101 4x70 42.5 3120.0 4650.0 2/0
Technical Data European
TOPSERV®100 (not shielded)
  • Special PUR drag chain cable
  • Based on DIN VDE 0293, 0295, 0250, 0281
  • Temperature Range
    Flexing -40°C to +80°C
    Fixed Installation -50°C to +90°C
  • Nominal Voltage U0/U 600/1000 V
  • A.C. Test Voltage, 50 Hz
    4000 V
  • Insulation Resistance
    min. 20 MOhm x km
  • Minimum Bending Radius
    approx. 5x cable diameters
TOPSERV® 101 (shielded)
  • Tech. data as per TOPSERV® 100, but
  • Minimum Bending Radius
    approx. 7,5x cable diameters
  • Coupling Resistance
    max. 250 Ohm/km
Approvals
RoHSCE VDE
Cable Construction
  • TOPSERV® 100 (not shielded)
    • Bare copper, ultra-fine wire to DIN VDE 0295 cl. 6 and/or IEC 60228 cl. 6
    • TPE-E conductor insulation, halogen-free
    • Black conductors with sequential numbering imprinted in white, to DIN VDE 0293
    • Green-yellow grounding
    • Conductors stranded together with optimal lay-length and stabilizing filler
    • Fleece wrapping facilitates sliding
    • PUR outer jacket
    • Jacket color orange (RAL 2003)
  • TOPSERV® 101 (shielded)
    • Construction as per TOPSERV® 100 up to fleece wrapping
    • Tinned copper braided shielding, coverage approx. 85%
    • PUR outer jacket
    • Jacket color orange (RAL 2003) according to DESINA®
Application
  • TOPSERV® 100 (not shielded)
    • Supply cable optimized especially for the supply of DNC motors. These cables are specially designed for use in power drag chains, handling equipment, robotics, tooling machinery, processing and manufacturing machinery. The optimized outside diameter, reduced weight and excellent torsion characteristics facilitate use in multi-shift operation with extreme alternating bending stress cycles.
  • TOPSERV® 101 (shielded)
    • Particularly recommended as a supply cable between frequency converters and servomotors.
      EMI = Electromagnetic interference
      To optimize the EMI features we recommend a large round contact of the copper braiding on both ends.
Properties
  • TOPSERV® 100 (not shielded)
    • Low adhesion, flame retardant, extremely abrasion resistant, halogen-free, resistant to UV, oil, hydrolysis and microbial attack PUR jacket
    • PUR jacket: self-extinguishing and flame retardant, test method B acc. to DIN VDE 0472 part 804 and IEC 60332-1
    • Optimized insulation materials ensure resistance to oils (including mineral oils), greases, coolants, hydraulic fluids as well as many alkalis and solvents.
  • TOPSERV® 101 (shielded)
    • Applications as described above, additionally optimal compliance with electromagnetic interference (EMI) requirements on account of the approx. 85% coverage by the braided shielding
    • Special feature: These cables are produced to high quality specifications and conform to the DESINA® standard

CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Note
  • For extreme applications extending beyond standard solutions we recommend that you request our questionnaire, which has been especially designed for energy supply systems.
  • Please observe applicable installation regulations for use in energy supply chains.
  • Desina®: Explanation: see introduction.
Cable Accessories
  • Coming Soon!
