Helukabel Servo, Feedback & Motor Cable:
TOPFLEX®-EMV-UV-3 PLUS 2YSLCYK-J
For Power Supply Connections to Frequency Converters, Double Shielded, VFD Motor
Supply Cable, 0.6/1 kV
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel Part-No.
Description & No.
Conductors x cross-sec. mm2
Outer
Dia. mm
Coupling
Resistance
Power
Ratings**)
w/ 3 loaded conductors in Ampere
Copper Weight
kg/km
Weight
ca. kg/km
AWG
w/
1 MHz
Ohm/km
w/
30 MHz
Ohm/km
22673
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X1.5 + 3X0.25)
10.2
-
-
18.0
86.0
140.0
16
22674
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X2.5 + 3X0.5)
11.4
18.0
210.0
26.0
144.0
220.0
14
22675
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X4 + 3X0.75)
13.0
11.0
210.0
34.0
224.0
323.0
12
22676
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X6 + 3X1)
15.0
6.0
150.0
44.0
298.0
420.0
10
22677
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X10 + 3X1.5)
18.4
7.0
180.0
61.0
491.0
615.0
8
22678
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X16 + 3X2.5)
21.6
9.0
190.0
82.0
723.0
819.0
6
22679
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X25 + 3X4)
25.3
4.0
95.0
108.0
1138.0
1325.0
4
22680
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X35 + 3X6)
27.8
3.0
85.0
135.0
1535.0
1718.0
2
22681
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X50 + 3X10)
32.6
2.0
40.0
168.0
2208.0
2399.0
1
22682
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X70 + 3X10)
39.0
2.0
45.0
207.0
2871.0
3056.0
2/0
22683
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X95 + 3X16)
44.3
1.0
50.0
250.0
3953.0
4162.0
3/0
22684
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X120 + 3X16)
46.8
-
-
292.0
4836.0
5075.0
4/0
22685
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X150 + 3X25)
53.5
-
-
335.0
5412.0
6128.0
300 kcmil
22686
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X185 + 3X35)
59.5
-
-
382.0
6969.0
7189.0
350 kcmil
22687
TOPFLEX-EMV-UV-3PLUS
2YSLCYK-J
(3X240 + 3X42.5)
65.2
-
-
-
8540.0
9540.0
500
kcmil
**) The current carrying capacity
for permanent operation at ambient temperature of +30°C/+86°F.
For deviating ambient temperatures the conversion factors
should be used and for further information see the
indication in DIN VDE 0298 part 4.
Technical
Data
Helukabel
Special motor power supply cable
for frequency converters adapted to
DIN VDE 0250
Temperature Range Flexing
-5°C to +70°C (+23°F to +158°F)
Fixed Installation
-40°C to +70°C (-40°F to +158°F)
Nominal Voltage U0/U
600/1000 V
Operating Voltage, Max. A.C. and 3-phase 700/1200
V
DC operation 900/1800 V
Peak value Û 1700
V
Test Voltage 2500
V
Insulation Resistance Min. 200 MOhm x km
Coupling Resistance Depending on the cross-section
Max. 250 Ohm/km
Minimum Bending Radius Fixed installation for outer Ø:
Up to 12 mm: 5x cable Ø
>12 to 20 mm: 7.5x cable Ø
>20 mm: 10x cable Ø
Free-movement for outer Ø:
Up to 12 mm: 10x cable Ø
>12 to 20 mm: 15x cable Ø
>20 mm: 20x cable Ø
Radiation Resistance Up to 80x106 cJ/kg (up to 80
Mrad)
Approvals

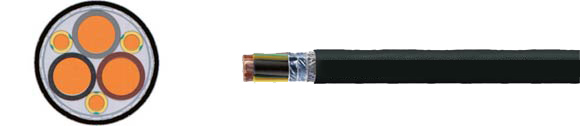

Cable
Construction
Bare copper, fine wire conductor
to DIN VDE 0295 cl. 5, BS 6360 cl.
5 and IEC 60228 cl. 5
Polyethylene (PE) conductor insulation
Conductor color: black, brown, gray,
green-yellow (grounding divided
into 3)
Conductors stranded in concentric layers
3+3 conductor design
1. shielding with special aluminum
foil
2. shielding with copper braiding,
tinned copper, coverage approx. 80%
As a
supply and connecting cable for medium
mechanical stresses in fixed installations
and forced movements in dry, moist
and wet environments, however, not
for outdoor applications. Used in
automotive and food industries, environmental
technology, packaging industry, machine
tools.
Handling equipment, for SIMOVERT
drives, they are particularly suitable
for use with industrial pumps, ventilators,
conveyor belts and air-conditioning
installations and similar applications.
Installation in hazardous areas. EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends. =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
Behavior in fire: Test according
to VDE 0482-332-1-2, DIN EN 60332-1-2 /
IEC 60332-1 (equivalent to DIN VDE
0472 part 804 test method B)
PE-insulation secures a lower
dielectric loss, double potential
strength, high longevity and low
shielding-interference currents
Low mutual capacitance
Meets EMI requirements according
to EN 55011 and DIN VDE 0875 part 11
Low coupling resistance for high
electromagnetic interference
Due to the optimal shielding
an interference-free operation
of frequency converters is obtained
The 3 Plus-construction of motor
power supply cables features a
symmetrical 3-conductor design, improved
in terms of EMC characteristics
comparing favorably with a 4-conductor
version
The protective conductor PE,
divided into 3 is uniformly stranded
in the interstices
This enables an extremely concentric
structure
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
The minimum cross-section of
0.75² meets the requirements
of DIN EN 60204 part 1
Resistant to ultra violet rays
This shielded motor supply cable
with low mutual capacitance of
the single conductors because of the
special PE conductor insulation and
low shielding capacitance enable a
low-loss transmission of the power
compared to PVC-outer jacket connecting
cables
Note
The current carrying capacity for
permanent operation at ambient temperature
of 30°C. For deviating ambient
temperatures the conversion factors
should be used and for further see
the indication in DIN VDE 0298 part
4
