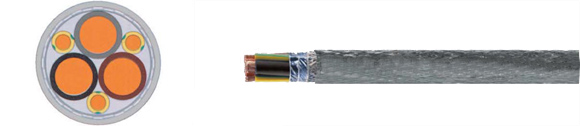

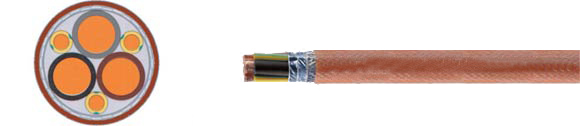

Servo, Feedback & Motor Cable: TOPFLEX®-EMV-3 PLUS 2YSLCY-J |
| For Power Supply Connections to Frequency Converters, Double Shielded, VFD Motor
Supply Cable, 0.6/1 kV |
|
|
|
- Special motor power supply cable
for frequency converters adapted to
DIN VDE 0250
- Temperature Range
Flexing
+5°C to +70°C (+41°F to +158°F)
Fixed Installation
-40°C to +70°C (-40°F to +158°F)
- Nominal Voltage U0/U
600/1000 V
- Max. Operating Voltage
A.C. and 3-phase 700/1200
V
DC operation 900/1800 V
- Peak value Û 1700
V
- Test Voltage 2500
V
- Insulation Resistance
Min. 200 MOhm x km
|
- Coupling Resistance
According to different cross-sections
Max. 250 Ohm/km
- Minimum Bending Radius
Fixed Installation for outer Ø:
Up to 12 mm: approx. 5x cable Ø
>12 to 20 mm: approx. 7.5x
cable Ø
>20 mm: approx. 10x cable Ø
Free-movement for outer Ø:
Up to 12 mm: approx. 10x cable Ø
>12 to 20 mm: approx. 15x
cable Ø
>20 mm: approx. 20x cable Ø
- Radiation Resistance
Up to 80x106 cJ/kg (up to 80
Mrad)
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors
x cross-sec. mm2 |
Outer
Dia. |
Coupling
Resistance |
Power
Ratings**)
w/ 3 loaded conductors in Ampere |
Copper Weight
kg/km |
Weight
ca. kg/km |
AWG |
w/
1 MHz
Ohm/km |
w/
30 MHz
Ohm/km |
| 22368 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X1.5 + 3X0.25) |
10.2 |
- |
- |
18.0 |
86.0 |
140.0 |
16 |
| 22369 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X2.5 + 3X0.5) |
11.4 |
18.0 |
210.0 |
26.0 |
144.0 |
220.0 |
14 |
| 22370 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X4 + 3X0.75) |
13.0 |
11.0 |
210.0 |
34.0 |
224.0 |
323.0 |
12 |
| 22371 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X6 + 3X1) |
15.0 |
6.0 |
150.0 |
44.0 |
298.0 |
420.0 |
10 |
| 22372 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X10 + 3X1.5) |
18.4 |
7.0 |
180.0 |
61.0 |
491.0 |
615.0 |
8 |
| 22373 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X16 + 3X2.5) |
21.6 |
9.0 |
190.0 |
82.0 |
723.0 |
819.0 |
6 |
| 22374 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X25 + 3X4) |
25.3 |
4.0 |
95.0 |
108.0 |
1138.0 |
1325.0 |
4 |
| 22375 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X35 + 3X6) |
27.8 |
3.0 |
85.0 |
135.0 |
1535.0 |
1718.0 |
2 |
| 22376 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X50 + 3X10) |
32.6 |
2.0 |
40.0 |
168.0 |
2208.0 |
2399.0 |
1 |
| 22377 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X70 + 3X10) |
39.0 |
2.0 |
45.0 |
207.0 |
2871.0 |
3056.0 |
2/0 |
| 22378 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X95 + 3X16) |
44.3 |
1.0 |
50.0 |
250.0 |
3953.0 |
4162.0 |
3/0 |
| 22379 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X120 + 3X16) |
46.8 |
- |
- |
292.0 |
4836.0 |
5074.0 |
4/0 |
| 22380 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X150 + 3X25) |
53.5 |
- |
- |
335.0 |
5412.0 |
6128.0 |
300 kcmil |
| 22381 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X185 + 3X35) |
59.5 |
- |
- |
382.0 |
6969.0 |
7189.0 |
350 kcmil |
| 22382 |
TOPFLEX-EMV-3PLUS
2YSLCY-J
(3X240 + 3X42.5) |
65.2 |
- |
- |
453.0 |
8540.0 |
9540.0 |
500
kcmil |
|
|
| **) The current carrying capacity
for permanent operation at ambient temperature of +30°C/+86°F.
For deviating ambient temperatures the conversion factors
should be used and for further information see the
indication in DIN VDE 0298 part 4. |
|
- Plain copper, fine wire conductor
according to DIN VDE 0295 cl. 5, BS
6360 cl. 5 and/or IEC 60228 cl. 5
- Polyethylene (PE) conductor insulation
- Conductor colors: black, brown, gray,
green-yellow (grounding divided into
3)
- 3+3-conductor structure
- Conductors stranded in concentric layers
- 1. shielding with special aluminum
film
- 2. shielding with copper braiding,
tinned copper, coverage approx. 80%
- Transparent Orange special PVC outer
jacket
- Part no. 22380 = capacitance
conductor/conductor 270 nF/km
conductor/shielding 520 nF/km
|
|
|
- Behavior in fire: Test according
to VDE 0482-332-1-2, DIN EN 60332-1-2 /
IEC 60332-1 (equivalent to DIN VDE
0472 part 804 test method B)
- PE-insulation secures a lower
dielectric loss, double potential
strength, high longevity and low
shielding-interference currents
- Low mutual capacitance
- Meets EMI requirements according
to EN 55011 and DIN VDE 0875 part 11
- Low coupling resistance for high
electromagnetic interference
- The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
- The shielding must be connected
at both ends and ensure large area
contact over the entire cable circumference
for compliance with the functional
interference requirements of EN
55011
- The minimum cross-section of
0.75² meets the requirements
of DIN EN 60204
part 1
|
|
|
- The current carrying capacity for
permanent operation at ambient temperature
of +30°C/+86°F. For deviating ambient
temperatures the conversion factors
should be used and for further see
the indication in DIN VDE 0298 part
4
|
|
As a
supply and connecting cable for medium
mechanical stresses in fixed installations
and forced movements in dry, moist
and wet environments, however, not
for outdoor applications. Used in
automotive and food industries, environmental
technology, packaging industry, machine
tools.
Handling equipment, for SIMOVERT
drives, they are particularly suitable
for use with industrial pumps, ventilators,
conveyor belts and air-conditioning
installations and similar applications.
Installation in hazardous areas.
This shielded motor supply cable
with low mutual capacitance of the
single conductors, because of the special
PE conductor insulation and low shielding
capacitance enable a low-loss transmission
of of power compared to connecting
cables with PVC jackets.
Due to optimal shielding, an interference-free
operation of frequency converters
is obtained.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
