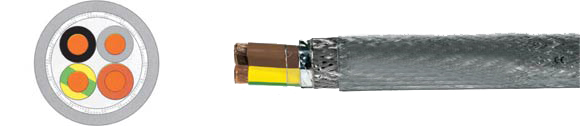

Servo, Feedback & Motor Cable: TOPFLEX®-EMV-2YSLCY-J |
| for power supply connections to frequency converters, double shielded, 0.6/1 kV |
|
|
|
- Special motor power supply cable
for frequency converters adapted to
DIN VDE 0250
- Temperature range
flexing +5°C to +70°C
fixed installation -40°C to +70°C
- Nominal voltage U0/U
600/1000 V
- Max. operating voltage
A.C. and 3-phase 700/1200
V
DC operation 900/1800 V
- Test voltage 2500
V
- Insulation resistance
min. 200 MOhm x km
- Coupling resistance
according to different cross-sections
max. 250 Ohm/km
|
- Mutual capacitance
according to different cross-sections
conductor/conductor 70 to 250 nF/km
conductor/shielding 110 to 410 nF/km
- Minimum bending radius
fixed installation for outer Ø:
up to 12 mm: approx. 5x cable Ø
>12 to 20 mm: approx. 7,5x
cable Ø
>20 mm: approx. 10x cable Ø
free-movement for outer Ø:
up to 12 mm: approx. 10x cable Ø
>12 to 20 mm: approx. 15x
cable Ø
>20 mm: approx. 20x cableØ
- Radiation-resistance
up to 80x106 cJ/kg (up to 80
Mrad)
|
|
|
| |
|
| |
| Part-No. |
Description & No.
Conductors
x cross-sec. mm2 |
Outer
Dia. |
Mutual
Capacitance |
Coupling
Resistance |
Power
Ratings**)
w/ 3 loaded conductors in Ampere |
Copper
weight
kg/km |
Weight
ca. kg/km |
AWG |
conductor/
conductor ca. nF/km |
conductor/
shield
ca. nF/km |
w/
1 MHz
Ohm/km |
w/
30 MHz
Ohm/km |
| 22084 |
T.-EMV-2YSLCY-J
(4G1.5) |
10.6 |
70.0 |
110.0 |
- |
- |
18.0 |
95.0 |
230.0 |
16 |
| 22085 |
T.-EMV-2YSLCY-J
(4G2.5) |
12.3 |
80.0 |
130.0 |
18.0 |
210.0 |
26.0 |
150.0 |
300.0 |
14 |
| 22086 |
T.-EMV-2YSLCY-J
(4G4) |
14.5 |
90.0 |
150.0 |
11.0 |
210.0 |
34.0 |
235.0 |
485.0 |
12 |
| 22087 |
T.-EMV-2YSLCY-J
(4G6) |
16.4 |
90.0 |
150.0 |
6.0 |
150.0 |
44.0 |
320.0 |
630.0 |
10 |
| 22088 |
T.-EMV-2YSLCY-J
(4G10) |
20.1 |
120.0 |
200.0 |
7.0 |
180.0 |
61.0 |
533.0 |
860.0 |
8 |
| 22089 |
T.-EMV-2YSLCY-J
(4G16) |
23.4 |
140.0 |
230.0 |
9.0 |
190.0 |
82.0 |
789.0 |
1290.0 |
6 |
| 22090 |
T.-EMV-2YSLCY-J
(4G25) |
27.0 |
120.0 |
210.0 |
4.0 |
95.0 |
108.0 |
1236.0 |
1860.0 |
4 |
| 22091 |
T.-EMV-2YSLCY-J
(4G35) |
30.7 |
150.0 |
260.0 |
3.0 |
85.0 |
135.0 |
1662.0 |
2610.0 |
2 |
| 22092 |
T.-EMV-2YSLCY-J
(4G50) |
36.1 |
190.0 |
320.0 |
2.0 |
40.0 |
168.0 |
2345.0 |
2950.0 |
1 |
| 22093 |
T.-EMV-2YSLCY-J
(4G70) |
42.3 |
190.0 |
320.0 |
2.0 |
45.0 |
207.0 |
3196.0 |
3950.0 |
2/0 |
| 22094 |
T.-EMV-2YSLCY-J
(4G95) |
47.7 |
250.0 |
410.0 |
1.0 |
50.0 |
250.0 |
4316.0 |
5300.0 |
3/0 |
| 22095 |
T.-EMV-2YSLCY-J
(4G120) |
51.9 |
- |
- |
- |
- |
292.0 |
5435.0 |
6600.0 |
4/0 |
| 22096 |
T.-EMV-2YSLCY-J
(4G150) |
57.5 |
- |
- |
- |
- |
335.0 |
6394.0 |
7040.0 |
300 kcmil |
| 22097 |
T.-EMV-2YSLCY-J
(4G185) |
61.1 |
- |
- |
- |
- |
382.0 |
7639.0 |
8380.0 |
350 kcmil |
|
|
| **) The current carrying capacity
for permanent operation at ambient temperature of 30°C.
For deviating ambient temperatures the conversion factors
should be used and for further information see the
indication in DIN VDE 0298 part 4. |
|
- Bare copper, fine wire conductor to
DIN VDE 0295 cl. 5, BS 6360 cl. 5 or
IEC 60228 cl. 5
- Polyethylene (PE) conductor insulation
- Conductor colors: black, brown, grey, green-yellow
- Conductors stranded in concentric layers
- 1. shielding with special aluminum
foil
- 2. shielding with copper braiding,
tinned copper, coverage approx. 80%
- Transparent special PVC outer jacket
|
|
|
- Behavior in fire: Test according
to DIN VDE 0482 Part 265-2-1/ EN 50265-2-1/
IEC 60332-1 (equivalent to DIN VDE
0472 part 804) test type B)
- Low mutual capacitance, to DIN VDE
0472 part 504, test method B
- Features PE-insulation secures a
lower dielectric loss, double potential
strength, high longevity and low shielding-interference
currents
- Installation in hazardous areas
- Low mutual capacitance
- Meets EMC requirements according
to EN 55011 and DIN VDE 0875 part 11
- Low coupling resistance for high
electromagnetic compatibility
- This shielded motor supply cable
with low mutual capacitance of the
single conductors because of the special
PE conductor insulation and low shielding capacitance
enable a low-loss transmission of the
power compared to PVC-outer jacket connecting
cables
- Due to the optimal shielding an interference-free
operation of frequency converters is
obtained
- The materials used in manufacture
are cadmium-free and contain no silicone
and free from substances harmful to
the wetting properties of lacquers
|
|
|
- G
= with green-yellow grounding;
x = without green-yellow grounding.
- The current carrying capacity for
permanent operation at ambient temperature
of 30°C. For deviating ambient
temperatures the conversion factors
should be used and for further see
the indication in DIN VDE 0298 part
4
|
|
This TOPFLEX®-EMV-2YSLCY-J
motor power supply cable for frequency
converters assures electromagnetic
compatibility in plants and buildings,
facilities with units and operating
equipments where fields of electromagnetic
interference might cause adverse
effects on the surroundings. As a
supply and connecting cable for medium
mechanical stresses in fixed installations
and forced movements in dry, moist
and wet environments, however, not
for outdoor applications. Used in
automotive and food industries, environmental
technology, packaging industry, machine
tools.
Handling equipment, for SIMOVERT
drives, they are particularly suitable
for use with industrial pumps, ventilators,
conveyor belts and air-conditioning
installations and similar applications.
EMI =
Electromagnetic Interference
To optimize the EMI features we recommend a large round contact of the copper
braiding on both ends.
 =
The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC. |
|
|
|
|
|
|
