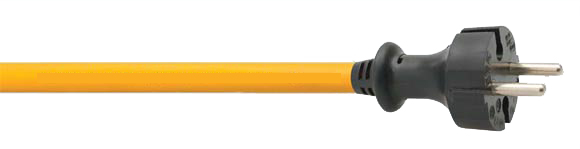

YELLOWFLEX - Connecting Cable, Pre-assembled Cables, Hi-Tech Controls, Helukabel

Helukabel Part-No.	Cable Type, cross-sec. mm²	Length (m)	Plug Type	Copper Weight kg/1000 pcs.	AWG
650950	YELLOWFLEX 2x1	2	Central Contour Connector	38.0	17
650951	YELLOWFLEX 2X1	3	Central Contour Connector	57.0	17
650952	YELLOWFLEX 2X1	5	Central Contour Connector	95.0	17
650953	YELLOWFLEX 2X1	10	Central Contour Connector	190.0	17
650958	YELLOWFLEX 2x1,5	2	Central Contour Connector	58.0	16
650959	YELLOWFLEX 2X1.5	3	Central Contour Connector	87.0	16
650960	YELLOWFLEX 2X1.5	5	Central Contour Connector	145.0	16
650961	YELLOWFLEX 2X1.5	10	Central Contour Connector	290.0	16
650954	YELLOWFLEX 3G1	2	Protected Plug, straight	58.0	17
650955	YELLOWFLEX 3G1	3	Protected Plug, straight	87.0	17
650956	YELLOWFLEX 3G1	5	Protected Plug, straight	145.0	17
650957	YELLOWFLEX 3G1	10	Protected Plug, straight	290.0	17
650962	YELLOWFLEX 3G1.5	2	Protected Plug, straight	86.0	16
650963	YELLOWFLEX 3G1.5	3	Protected Plug, straight	129.0	16
650964	YELLOWFLEX 3G1.5	5	Protected Plug, straight	215.0	16
650965	YELLOWFLEX 3G1.5	10	Protected Plug, straight	430.0	16

Technical Data

Helukabel

Special rubber sheathed cable acc. to DIN VDE 0282 Part 4, HD 22.4 S3
Temperature range
flexing -25°C to +100°C
fixed installation -50°C to +100°C
Permissible operating temperature
at conductor +90°C
Nominal voltage
U₀/U 450/750 V
with protected fixed installation
U₀/U 600/1000 V

Highest permissible operating voltage
in three-phase and one-phase
a.c. systems U₀/U 476/825 V
in d.c. systems U₀/U 619/1238 V
Test voltage 3000 V
Minimum bending radius, flexible
up to 12 mm cable Ø: 3x cable Ø
greater than 12 mm cable Ø: 4 x 6 cableØ
End 1: Plug
End 2: 30 mm stripped with wire end ferrule

Approvals

Cable Construction

Bare copper conductor, fine wire to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and/or HD 383
Rubber conductor insulation, EPR/EPDM adapted to DIN VDE 0207 part 20
conductor identification to DIN VDE 0293-308
conductor colors
- up to 5 conductors one-colored
- 6 and more conductors, black with numbering
- 3 conductors and above with green/yellow earth conductor
- 2 conductors without green-yellow earth conductor
conductors stranded in layers with optimal lay-length
Special outer jacket, cross-linked
jacket color Yellow (RAL 1021)

Application

These robust special rubber sheathed cables can be used where high demands are placed on temperature range, flexibility and mechanical stress. For application on construction sites, in steel works and rolling mills in heating and air-conditioning systems, in the bottling industry, in machinery and plant construction, in the chemical industry and painting systems, as well as for the professional and the hobby enthusiast. The choice of yellow as the jacket color ensures additional safety. Can be used in potentially explosive areas acc. to DIN VDE 0165.

= The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties

Flame-retardant acc. to DIN VDE 0482, Part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (as per DIN VDE 0472, Part 104 Test Method B)
High flexibility at low temperatures
Increased stability
Tear-resistant
Resistant to
Atmospheric influences
Ozone
Hydrolysis
UV-radiation
Largely resistant to
Oils and fats
The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers
