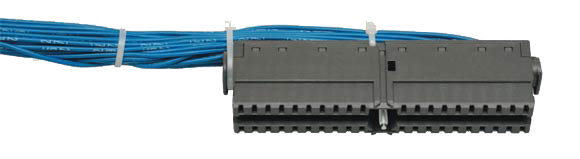

Pre-assembled Cable: Front Connecting Cables for Simatic® S7
Hi-Tech Controls, Inc, HELUKABEL wires and cables
Helukabel
Part-No.
Length (m)
Copper Weight
kg/1000
Weight ca. kk/100
Front Connector 392-1AJ00-0AA0 20-pin for Simatic® S7-300 Spring version ( Screw fitting version on request)
84867
2
324
510
84868
3
468
730
84869
5
756
1170
Front Connector 392-1AM00-0AA0 40-pin for Simatic® S7-300 Spring version ( Screw fitting version on request)
84870
2
648
1000
84871
3
936
1400
84872
5
1512
2320
Front Connector 492-1CL00-0AA0 48-pin for Simatic® S7-400 Crimp version ( Screw or Spring version on request)
84873
2
746
1120
84874
3
1077
1630
84875
5
1739
2640
Technical
Data
Helukabel
Cable Construction
Cable conductors 0.75 mm2 in dark blue (RAL 5010)
Printed characters in white
Numbers acc. to allocation in the plug
Original front connector can be completely allocated
Conductors cut flush
Customized pre-assembly possible
Approvals
Cable
Construction
Cable conductors 0.75 mm2 in dark blue (RAL 5010)
Printed characters in white
Numbers acc. to allocation in the plug
Original front connector can be completely allocated
Conductors cut flush
Customized pre-assembly possible
Application
These pre-assembled cables with pre-wired front connectors are highly suitable for Simatic S7 programmable logic controllers (PLC).
As opposed to past days when you had to cut to length, strip, crimp, screw in and mark, pre-wired front connectors offer the customer a host of advantages for the Simatic S7 system.
Properties
Advantages
Tremendous time savings
Quick wiring
Considerably easier troubleshooting
Customized pre-assembled cable
Note
Other lengths, dimensions, colors and specials conditions possible on request
