KD 5255 - Enclosure Box for Offshore Applications w/ Metric Knockouts & Terminal

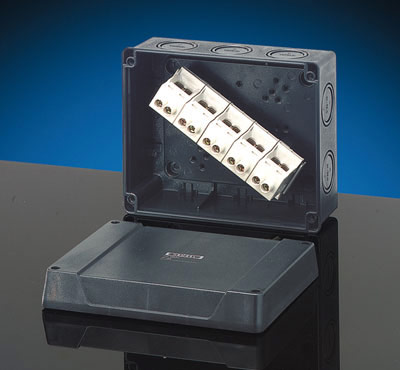

KD 5255 - Enclosure Box for Offshore Applications
  Enlarge Picture

KD 5255 - Enclosure Box for Offshore Applications
Enlarge Picture



  • saltwater-proof
  • acid-resistant lid screws made of stainless steel
  • with terminal
  • burning behavior 960° C; UL Subject 94: 5 V
Approval mark vde DNV German Lloyd
rated connecting capacity 3~ 10-25 mm�
conductor material: Cu
Polarity 5-pole, per pole
conductor cross section sol 6 x 10 mm�
s 4 x 16 mm�
s 4 x 25 mm�
s 2 x 35 mm�
current carrying capacity of the terminal 102 A
rated insulation voltage AC/DC 690 V
degree of protection: IP 66 / IP 67
temporary submersion up to 1 meter, max. 15 minutes
material: Polycarbonate
color: black RAL 9011
cable entry cable/conduit entry via metric knockouts order ASS separately (refer to index LES)
in accordance with IEC 60,670-22
in accordance with Det Norske Veritas Certificate No. E-9693 Germanischer Lloyd Certificate No.: 12 941 - 11 HH Russian Maritime Register of Shipping, technical documentation is approved by the letter No. 250-011-2-39

Accessories Accessories
Detailed Dimensions Detailed Dimensions
Hole Configuration: Hole Configuration: Number of Holes & Sizes

KD5255 Features & Applications

High quality Thermoplastic PC 5 (Polycarbonate):
  • Impact Resistant
  • Halogen-free and Silicone-free
  • UV-resistant
  • Fire-resistant & Self-extinguishing
  • Low toxicity
  • IP 66 / IP 67
  • Color Black RAL 9011
  • RoHS Compliant
  • Cable entry via Metric knockouts

Application:
Suitable for use in offshore areas and for indoor/outdoor installation (normal to harsh environment) in accordance with DIN VDE 0100, Part 737.
Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner
without additives, water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m, box and cable entries at least IP 65.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
