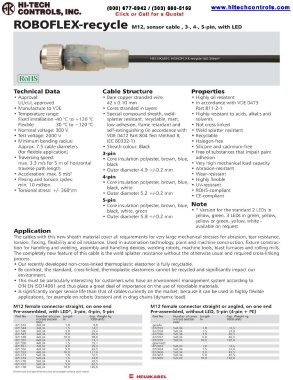

ROBOFLEX-recycle M12, sensor cable, 3-, 4-, S-pin, with LED
HFI I IKAAFI ROAon FX ,<,eyel" 1~() 14mm'
iRoHSi
Technical Data Cable Structure Properties
• Approval: • Bare copper stranded wire. • Highly oil resistant
UUcUL approved 42 xO.l0 mm • in accordance with VOE 0473
• Manufacture to VDE • Cores stranded in layers Part 811-2-1
• Temperature range: • Special compound sheath, weld- • Highly-resistant to adds, alkalis and
Fixed installation -40 °C to + 120 °C splatter resistant. recyclable. matt, solvents
Flexible ·30 °Cto + 120 °C low-adhesion, flame retardant and • Not cross-linked
• Nominal voltage: 300 V self-extinguishing (in accordance with • Weld splatter resistant
• Test voltage: 2000 V VOE 0472 Part 804 Test Method B, • Recyclable
• Minimum bending radius: IEC 60332-') • Halogen-free
Approx. 7.5 cable diameters • Sheath colour: Black • Silicone and cadmium-free
(for flexible application) 3-pin • Free of substances that impair paint
• Traversing speed: • Core insulation polyester, brown, blue, adhesion
max. 3.3 rn/s for 5 m of horizontal black • Very high mechanical load capacity
traverse path length • Outer diameter 4.9 +/-0.2 mm • Abrasion-resistant
• Acceleration: max. 5 m/s 2 4-pin • Wear-resistant
• Flexing and torsion cycles: • Highly flexible
min. 10 million. • Core insulation polyester, brown, blue, • UV-resistant
o
• Torsional stress: +/- 360 /m black, white • ROHS-compliant
• Outer diameter 5.2 + /-0.2 mm
• CE-compliant
5-pin
• Core insulation polyester, brown. blue. Note
black. white, green • * Version for the standard 2 LEOs in
• Outer diameter 5.8 + /-0.2 mm yellow, green. 3 LEOs in green, yellow,
yellow or green, yellow, white -
available on request.
Application
The cables with this new sheath material cover all requirements for very large mechanical stresses for abrasion. tear resistance.
torsion. flexing, flexibility and oil resistance. Used in automation technology. plant and machine construction. fixture construc-
tion for handling and welding, assembly and handling devices, welding robots, machine tools, blast furnaces and rolling mills.
The completely new feature of this cable is the weld splatter resistance without the otherwise usual and required cross-linking
process.
• Our recently developed non-cross-linked thermoplastic elastomer is fully recyclable.
• By contrast, the standard, cross-linked, thermoplastic elastomers cannot be recycled and significantly impact our
environment.
• This must be particularly interesting for customers who have an environment management system according to
DIN EN IS014001 and thus place a great deal of importance on the use of recyclable materials.
• A significantly longer seIVice life than that of cables currently on the market. because it can be used in highly flexible
applications. for example on robots (torsion) and in drag chains (dynamic load).
M12 female connector straight, on one end M12 female connector straight or angled, on one end
Pre-assembled, with LED·, 3-pin, 4-pin, S-pin Pre-assembled, w ithout LED, 5-pin (4-pin + PE)
P/lt"C No. Number of cores length P~rt ~ ~~os~ s!!,f:n e5 ~9th ~g&, ";;'~tt ~9
• Cross _lion m , ....
mm' mm'
671543 3.0,34 1,0 '.' ,.,
671 544 ),,0.34 1.5 14.7 67239) 5.0,34 '.0
671546 3.0.34 3,0 29.4 672394 5.0.34 ." 24,8
611541 ),,0,34 5,0 49,0 672396 s.o.34 3.0 49,5
671548 3.0.34 10,0 ".0 672397 51<0.34 '.0 .",
611551 4oD.34 1.0 13.1 672399 51<0.34 10.0 165.0
671550 4.0.34 1,5 19.1 9ew,n ~1
671551 4>10.)4 ).0 )9,) 672403 51<0,34 '.0 16,5
671552 4.0.34 5.0 65.5 672404 51<0.34 '.' 24,8
61155) 4.0,34 10,0 131.0 612406 5.0.34 3.0 49.5
671 473 5.0.34 I,D 16.5 672407 51<0.34 '0 82,5
671474 5>dJ.34 1,5 24.8 672409 51<0.34 10,0 165,0
671 476 5.0,34 3.0 49,5
671471 SxO.)4 5.0 82.5
671 478 5.0.34 10.0 165.0
