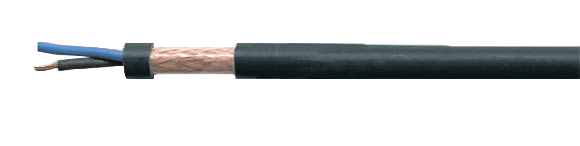

Ship Wiring & Marine Cable: Ships Power Cable MPRXCX

0.6/1kV, Acc. to IEC 60092-353, Halogen-Free

Ships Power Cable MPRXCX acc. to IEC 60092-353, halogen-free, Ship Wiring & Marine Cables, Sealcon, European

Technical Data

As per IEC 60092-353
Temperature Range
Max. +85°C/+185°F conductor temperature
Min. Installation Temperature
-10°C/+14°F
Nominal Voltage
U₀/U 0.6/1 kV
Minimum Bending Radius
Approx. 4x cable Ø

Tests
Flame-test to VDE 0472 part 804, test method C, IEC 60332-3 cat. A and IEEE 45-18.13
Smoke density to IEC 61034
Halogen-free to 60754-1
Corrosiveness of combustion gases to IEC 60754-2

More...		Cable Construction		Application
More...		Note		Properties

No. of Conductors Selection
	1	2	3	4	5	7
	10	12	14	16	19	24

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59707	MPRXCX 0.6/1KV 1X4	7.3	81.0	105.0	12
59708	MPRXCX 0.6/1KV 1X6	7.8	104.0	130.0	10
59709	MPRXCX 0.6/1KV 1X10	8.9	149.0	180.0	8
59710	MPRXCX 0.6/1KV 1X16	9.8	214.0	250.0	6
59711	MPRXCX 0.6/1KV 1X25	11.7	311.0	380.0	4
59712	MPRXCX 0.6/1KV 1X35	12.7	416.0	480.0	2
59713	MPRXCX 0.6/1KV 1X50	14.8	572.0	660.0	1
59714	MPRXCX 0.6/1KV 1X70	16.9	779.0	900.0	2/0
59715	MPRXCX 0.6/1KV 1X95	18.7	1034.0	1170.0	3/0
59716	MPRXCX 0.6/1KV 1X120	20.6	1316.0	1410.0	4/0
59717	MPRXCX 0.6/1KV 1X150	22.7	1615.0	1750.0	300 kcmil
59718	MPRXCX 0.6/1KV 1X185	24.9	1968.0	2160.0	350 kcmil
59719	MPRXCX 0.6/1KV 1X240	27.2	2506.0	2770.0	500 kcmil
59720	MPRXCX 0.6/1KV 1X300	30.4	3345.0	3440.0	600 kcmil

59721	MPRXCX 0.6/1KV 2X1.5	3.9	105.0	130.0	16
59722	MPRXCX 0.6/1KV 2X2.5	10.2	132.0	160.0	14
59723	MPRXCX 0.6/1KV 2X4	11.4	170.0	205.0	12
59724	MPRXCX 0.6/1KV 2X6	12.6	217.0	290.0	10
59725	MPRXCX 0.6/1KV 2X10	14.8	400.0	307.0	8
59726	MPRXCX 0.6/1KV 2X16	16.9	471.0	560.0	6
59727	MPRXCX 0.6/1KV 2X25	20.4	670.0	840.0	4

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59728	MPRXCX 0.6/1KV 3X1.5	9.9	125.0	160.0	16
59729	MPRXCX 0.6/1KV 3X2.5	10.8	161.0	200.0	14
59730	MPRXCX 0.6/1KV 3X4	12.0	215.0	250.0	12
59731	MPRXCX 0.6/1KV 3X6	13.2	282.0	360.0	10
59732	MPRXCX 0.6/1KV 3X10	15.7	417.0	520.0	8
59733	MPRXCX 0.6/1KV 3X16	18.0	636.0	750.0	6
59734	MPRXCX 0.6/1KV 3X25	21.7	924.0	950.0	4
59735	MPRXCX 0.6/1KV 3X35	23.1	1233.0	1470.0	2
59736	MPRXCX 0.6/1KV 3X50	26.5	1703.0	1870.0	1
59737	MPRXCX 0.6/1KV 3X70	29.1	2413.0	2650.0	2/0
59738	MPRXCX 0.6/1KV 3X95	32.9	3192.0	3500.0	3/0
59739	MPRXCX 0.6/1KV 3X120	36.7	3975.0	4300.0	4/0

59740	MPRXCX 0.6/1KV 4X1.5	10.6	147.0	200.0	16
59741	MPRXCX 0.6/1KV 4X2.5	11.9	190.0	240.0	14
59742	MPRXCX 0.6/1KV 4X4	13.0	284.0	350.0	12
59743	MPRXCX 0.6/1KV 4X6	14.6	371.0	450.0	10
59744	MPRXCX 0.6/1KV 4X10	17.3	545.0	670.0	8
59745	MPRXCX 0.6/1KV 4X16	19.8	796.0	950.0	6
59746	MPRXCX 0.6/1KV 4X25	23.9	1170.0	1470.0	4
59747	MPRXCX 0.6/1KV 4X35	25.7	1578.0	1930.0	2
59748	MPRXCX 0.6/1KV 4X50	29.6	2278.0	2500.0	1
59749	MPRXCX 0.6/1KV 4X70	33.7	3090.0	3550.0	2/0
59750	MPRXCX 0.6/1KV 4X95	38.3	4110.0	4600.0	3/0

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59751	MPRXCX 0.6/1KV 5X1.5	11.7	171.0	225.0	16
59752	MPRXCX 0.6/1KV 5X2.5	12.8	220.0	330.0	14

59753	MPRXCX 0.6/1KV 7X1.5	12.5	209.0	310.0	16

59754	MPRXCX 0.6/1KV 10X1.5	16.0	318.0	400.0	16

59755	MPRXCX 0.6/1KV 12X1.5	16.6	353.0	440.0	16

59756	MPRXCX 0.6/1KV 14X1.5	17.4	394.0	500.0	16

59757	MPRXCX 0.6/1KV 16X1.5	18.2	432.0	550.0	16

59758	MPRXCX 0.6/1KV 19X1.5	19.3	486.0	620.0	16

59759	MPRXCX 0.6/1KV 24X1.5	22.4	601.0	770.0	16

Cable Construction

to top

Stranded, bare copper conductors to DIN VDE 0295 cl. 2, BS 6360 cl. 2 and IEC 60228 cl. 2
Conductor insulation of cross-linked polyethylene
Conductors stranded in layers with optimal lay-length
Conductors wrapping with foil
Copper shielded braiding
Outer jacket, Polyolefin basis-compound
Jacket color: Black

Properties

to top

Color code
1 conductor: black
2 conductors: black/blue
3 conductors: black/blue/brown
4 conductors: black/blue/brown/white
5- to 24 conductor cable: all conductors black colored, printed with numbers, starting in center with number 1
Approved by
Germanischer Lloyd, Lloyds Register of Shipping, American Bureau of Shipping, Det Norske Veritas, Bureau Veritas,Russian Maritime Register of Shipping and Registro Italiano Navale
Flame retardant according to SOLAS definition (according to IEC 60332-3 category A and IEEE 45-18.13)

Note

to top

AWG sizes are approximate equivalent values. The actual cross-section is in mm².
3-conductor cables with green-yellow marked conductor and/or as MPRXCX 331 (insulation integrity to IEC 60331) also available.

Application

to top

For fixed installation on ships and offshore-units in all locations below the upper metallic deck. Therefore, these cables are especially suitable for the installation on passenger ships. The good shielding qualities of the copper braid also reduce radio interferences and electrical influences to electronic installations.
