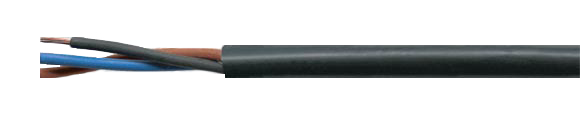

Ship Wiring & Marine Cable: Ships Power Cable MPRX

0.6/1kV, Acc. to IEC 60092-353, Halogen-Free

Ships Power Cable MPRX acc. to IEC 60092-353, halogen-free, Ship Wiring & Marine Cables, Sealcon, European

Technical Data

As per IEC 60092-353
Temperature Range
Max. +85°C/+185°F conductor temperature
Min. Installation Temperature
-10°C/+14°F

Nominal Voltage U₀/U 0.6/1 kV
Minimum Bending Radius
Approx. 4x cable Ø

More...		Cable Construction		Application
More...		Note		Properties

No. of Conductors Selection
	1	2	3	4	5	7
	10	12	14	16	19	24

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59654	MPRX 0.6/1KV 1X4	5.9	38.0	70.0	12
59655	MPRX 0.6/1KV 1X6	6.4	58.0	95.0	10
59656	MPRX 0.6/1KV 1X10	7.3	96.0	140.0	8
59657	MPRX 0.6/1KV 1X16	8.2	154.0	200.0	6
59658	MPRX 0.6/1KV 1X25	10.1	240.0	320.0	4
59659	MPRX 0.6/1KV 1X35	11.1	336.0	420.0	2
59660	MPRX 0.6/1KV 1X50	12.8	480.0	560.0	1
59661	MPRX 0.6/1KV 1X70	14.9	672.0	780.0	2/0
59662	MPRX 0.6/1KV 1X95	16.7	912.0	1030.0	3/0
59663	MPRX 0.6/1KV 1X120	18.6	1152.0	1290.0	4/0
59664	MPRX 0.6/1KV 1X150	20.7	1440.0	1590.0	300 kcmil
59665	MPRX 0.6/1KV 1X185	22.9	1776.0	1960.0	350 kcmil
59666	MPRX 0.6/1KV 1X240	25.7	2304.0	2560.0	500 kcmil
59667	MPRX 0.6/1KV 1X300	28.4	2880.0	3200.0	600 kcmil

59668	MPRX 0.6/1KV 2X1.5	7.8	29.0	80.0	16
59669	MPRX 0.6/1KV 2X2.5	8.9	48.0	105.0	14
59670	MPRX 0.6/1KV 2X4	9.9	77.0	145.0	12
59671	MPRX 0.6/1KV 2X6	10.9	115.0	190.0	10
59672	MPRX 0.6/1KV 2X10	13.0	192.0	290.0	8
59673	MPRX 0.6/1KV 2X16	15.1	307.0	430.0	6
59674	MPRX 0.6/1KV 2X25	17.6	480.0	680.0	4

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59675	MPRX 0.6/1KV 3X1.5	8.3	43.0	100.0	16
59676	MPRX 0.6/1KV 3X2.5	9.4	72.0	140.0	14
59677	MPRX 0.6/1KV 3X4	10.4	115.0	190.0	12
59678	MPRX 0.6/1KV 3X6	11.8	173.0	260.0	10
59679	MPRX 0.6/1KV 3X10	13.8	288.0	410.0	8
59680	MPRX 0.6/1KV 3X16	16.1	461.0	600.0	6
59681	MPRX 0.6/1KV 3X25	19.8	720.0	970.0	4
59682	MPRX 0.6/1KV 3X35	21.3	1008.0	1290.0	2
59683	MPRX 0.6/1KV 3X50	24.7	1440.0	1720.0	1
59684	MPRX 0.6/1KV 3X70	27.3	2016.0	2450.0	2/0
59685	MPRX 0.6/1KV 3X95	31.1	2736.0	3305.0	3/0
59686	MPRX 0.6/1KV 3X120	34.5	3456.0	4140.0	4/0

59687	MPRX 0.6/1KV 4X1.5	9.2	58.0	130.0	16
59688	MPRX 0.6/1KV 4X2.5	10.3	96.0	180.0	14
59689	MPRX 0.6/1KV 4X4	11.6	154.0	245.0	12
59690	MPRX 0.6/1KV 4X6	12.6	230.0	345.0	10
59691	MPRX 0.6/1KV 4X10	15.4	384.0	535.0	8
59692	MPRX 0.6/1KV 4X16	17.9	614.0	795.0	6
59693	MPRX 0.6/1KV 4X25	22.0	960.0	1300.0	4
59694	MPRX 0.6/1KV 4X35	23.9	1344.0	1725.0	2
59695	MPRX 0.6/1KV 4X50	27.8	1920.0	2310.0	1
59696	MPRX 0.6/1KV 4X70	32.9	2688.0	3275.0	2/0
59697	MPRX 0.6/1KV 4X95	36.1	3648.0	4445.0	3/0

Part-No.	Description & No. Conductors x cross-sec. mm²	Outer Diameter	Copper Weight kg/km	Weight ca. kg/km	AWG
59698	MPRX 0.6/1KV 5X1.5	10.1	72.0	165.0	16
59699	MPRX 0.6/1KV 5X2.5	11.2	120.0	225.0	14

59700	MPRX 0.6/1KV 7X1.5	11.0	101.0	205.0	16

59701	MPRX 0.6/1KV 10X1.5	14.1	144.0	290.0	16

59702	MPRX 0.6/1KV 12X1.5	14.7	173.0	330.0	16

59703	MPRX 0.6/1KV 14X1.5	15.5	202.0	375.0	16

59704	MPRX 0.6/1KV 16X1.5	16.3	230.0	440.0	16

59705	MPRX 0.6/1KV 19X1.5	17.4	274.0	500.0	16

59706	MPRX 0.6/1KV 24X1.5	20.5	346.0	630.0	16

Cable Construction

to top

Stranded, bare copper conductors to DIN VDE 0295 cl. 2, BS 6360 cl. 2 and IEC 60228 cl. 2
Conductor insulation of cross-linked polyethylene
Conductors stranded in layers with optimal lay-length
Outer jacket, Polyolefin basis-compound
Jacket color: Black

Properties

to top

Color code
1 conductor: black
2 conductors: black/blue
3 conductors: black/blue/brown
4 conductors: black/blue/brown/white
5 to 24 conductor cable: all conductors black colored, printed with numbers, starting in center with number 1
Approved by
Germanischer Lloyd, Lloyds Register of Shipping, American Bureau of Shipping, Det Norske Veritas, Bureau Veritas, Russian Maritime Register of Shipping and Registro Italiano Navale
Tests
Flame-test to VDE 0472 part 804, test method C, IEC 60332-3 cat. A and IEEE 45-18.13
Smoke density to IEC 61034
Halogen-free to 60754-1
Corrosiveness of combustion gases to IEC 60754-2
Flame retardant according to SOLAS definition (according to IEC 60332-3 category A and IEEE 45-18.13)

Note

to top

AWG sizes are approximate equivalent values. The actual cross-section is in mm².

Application

to top

For fixed installation on ships and offshore-units in all locations below the upper metallic deck.
Therefore, these cables are especially suitable for the installation on passenger ships.
